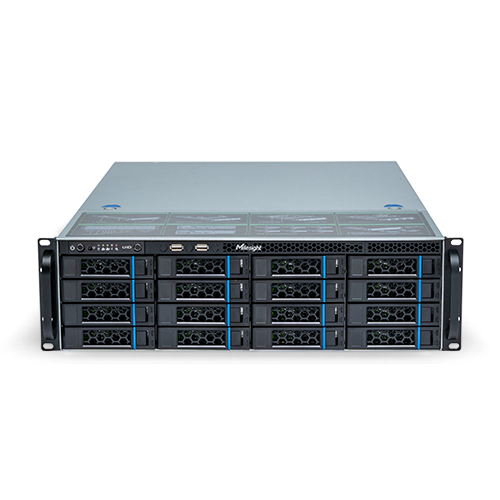

MileSight Enterprise NVR with 64-CH License, 16 Disk Slots.3U
MileSight Enterprise NVR with 64-CH License, 16 Disk Slots.3U
Model: VE1604-A1
Available in stock
Open here
* Integrate with Milesight network cameras, sensors and 3rd party network cameras
* Support up to 16*20TB storage and expandable storage capacity
* Pre-loaded with Milesight VMS Server & Client
* Central Management for single and multiple sites
* N+M Failover ensures data security
* Windows-based operating system
* Support RAID 0, 1, 5, 6, 10, 50,60
* Support 1*2.5Gbps, 2*100Mbps LAN port
* 4* DDR4 Slot(2*8GB Pre-installed)
* 2*HDMI Port, 1*DP Port(Support independent and synchronous display)
* 1* BNC In + 1*BNC Out
* Front panel: 2*USB 3.0 + Rear panel: 4*USB 2.0+2*USB 3.2 Gen2
* AC 100-240V, 50-60Hz, redundant power supply
Couldn't load pickup availability
- Integrate with Milesight network cameras, sensors and 3rd party network cameras
- Support up to 16*20TB storage and expandable storage capacity
- Pre-loaded with Milesight VMS Server & Client
- Central Management for single and multiple sites
- N+M Failover ensures data security
- Windows-based operating system
- Support RAID 0, 1, 5, 6, 10, 50,60
- Support 1*2.5Gbps, 2*100Mbps LAN port
- 4* DDR4 Slot(2*8GB Pre-installed)
- 2*HDMI Port, 1*DP Port(Support independent and synchronous display)
- 1* BNC In + 1*BNC Out
- Front panel: 2*USB 3.0 + Rear panel: 4*USB 2.0+2*USB 3.2 Gen2
- AC 100-240V, 50-60Hz, redundant power supply
| Devices | |
|---|---|
| IncludedCameraAccessLicense | 64 |
| Recording | |
| RecordingSchedule | 64 |
| Bandwidth | |
| IncomingBandwidth | 1920Mbps |
| OutgoingBandwidth | 1920Mbps |
| Decoding | |
| VideoFormat | MJPEG,H.264,H.265 |
| DecodingResolution | Upto12MP |
| DecodingCapability | 12MP(4000*3000)@20fps=6CH 8MP(3840*2160)@30fps=6CH 2MP(1920*1080)@30fps=39CH 720P(1280*720)@30fps=52CH D1(704*576)@30fps=64ch |
| Event&Alarm | |
| EventandAlarmRules | 1000 |
| Users&Roles | |
| ConcurrentAccessesviaClients,AppClients | 300 |
| Users | 1000 |
| Roles | 100 |
| LocalViewing | Support |
| System | |
| MainProcessor | IntelCore12thi5 |
| Memory | 2*8GBDDR4 |
| NetworkInterface | 2*1000MbpsRJ-45ports 1*2.5GbpsRJ-45ports |
| OperatingSystem | MicrosoftWindows10IoTEnterprise64bit |
| GPUOptions | IntegratedGPU |
| AutoPowerOn | Support |
| Auxiliary Interface | |
| HDDDrives(VideoData) | 16*SATA(3.5"or2.5") Supporthot-plug |
| SSDDrive(OperatingSystem) | 2*M.2SSD(1*250GBPre-installed) |
| RAM | 4*DDR4Slot(2*8GBPre-installed,upto4*32GB) SupportDual-ChannelMode |
| Capacity | Upto20TBcapacityforeachdisk |
| RAID | SupportRAID0,1,5,6,10,50,60 |
| LAN | 1*2.5Gbps,2*1000Mbps |
| Display | 2*HDMIPort,1*DPPort Supportindependentandsynchronousdisplay |
| Audio | 3*AudioJacks |
| USBInterface | Frontpanel:2*USB2.0;Rearpanel:4*USB2.0,2*USB3.2Gen2 |
| PowerSupply | AC100-240V,50-60Hz,redundantpowersupply |
| General | |
| Chassis | 3U |
| Consumption | ≦75W(withoutHDD) |
| WorkingTemperature | 0°Cto+50°C(32°Fto122°F) |
| WorkingHumidity | 10%to90%RH(nofreezingandnocondensation) |
| Weight | 17kg(withoutrail)/19kg(withrail) |
| Dimensions | 480X675X133.5mm |
| Warranty | 3Years |
