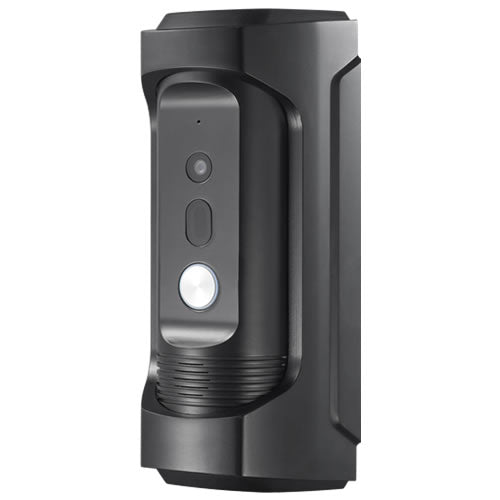

Galaxy IP Video Intercom Water Proof Vandal-Resistant Door Station
Galaxy IP Video Intercom Water Proof Vandal-Resistant Door Station
Model: VDP-KB8112-IM
Regular price
$276.95
Sale price
$276.95
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1-Unit Indoor station access, Power-over-Ethernet (IEEE 802.3af Standard POE), IK9 and IP66 Rating, DC12V
Couldn't load pickup availability
- 1-Unit Indoor station access
- Power-over-Ethernet (IEEE 802.3af Standard POE)
- IK9 and IP66 Rating, 12 VDC
| System Parameters | |
| Processor: | High-Performance Embedded SOC Processor |
| Operation System: | Embedded Linux Operation System |
| Camera Parameters | |
| Image Sensor: | 1/3" Progressive Scan CMOS, Color, Day/Night |
| Light sensitivity: | Low Illumination |
| Lens: | Pinhole, f3.47mm,F2.5 |
| Field of view: | 80° (Horizontal), 44° (Vertical) |
| Field of view adjustment: | -50° to 50° |
| Video Parameters | |
| Video streaming: | Dual Stream |
| Video Compression Standard: | H.264 |
| Resolution: | Main Stream: 1280 × 720 Sub-Stream: 640 x 480 |
| Video frame rate: | PAL: 25 fps, NTSC: 30 fps |
| Video bit rate: | Main Stream: 32 Kbps to 4096 Kbps Sub-Stream: 32 Kbps to 2048 Kbps |
| Anti-flicker frequency: | 50 Hz, 60 Hz |
| Wide dynamic range: | Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF |
| Image settings: | Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,OSD Display |
| Audio Parameters | |
| Audio streaming: | Two-Way, Full Duplex |
| Audio Input: | Built-in Omnidirectional Microphone |
| Audio Output: | Built-in Loudspeaker |
| Audio Compression Standard: | G.711 U |
| Audio Compression Rate: | 64 Kbps |
| Audio Quality: | Noise Suppression and Echo Cancellation |
| Network Parameters | |
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet |
| Light Supplement | |
| Light Supplement Mode: | IR Supplement, IR Distance: 5 Meters |
| Wavelength: | 940 nm |
| Control: | Auto ON/OFF, Time ON/OFF |
| Alarm Parameters | |
| Alarm Input: | Door Magnetic Alarm |
| Event actions | |
| Event: | Motion Detection, Picture Capturing, Call Button Pressing |
| File uploading: | FTP |
| Email notification: | Login Succeeded via Software or Web |
| Device Interfaces | |
| Network Interface: | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| I/O Input: | 1 |
| I/O Output: | 1 Relay Output |
| General | |
| Material: | Wall Mounting Shield: Zinc Alloy Front Panel: Zinc Alloy Rear Panel: Aluminum Alloy Wall Mounting Plate: Secc |
| Impact protection: | IK 9 |
| Power Supply: | PoE (Power over Ethernet) 12 VDC |
| Power Consumption: | 12 W |
| Working Temperature: | -30° C to +50° C (-22° F to 122° F) |
| Working Humidity: | 10% to 90% |
| IP Protection Level: | IP66 |
| Video management software : | Video management software from HIKVISOIN (included). For more information, see http://www.hikvision.com/us/Tools_84.html |
| Dimensions(L × W × H): | 161.9 mm × 74.1 mm × 53.2 mm (6.37" × 2.92" × 2.09") |
| Weight: | 773g (1.70lb) |
