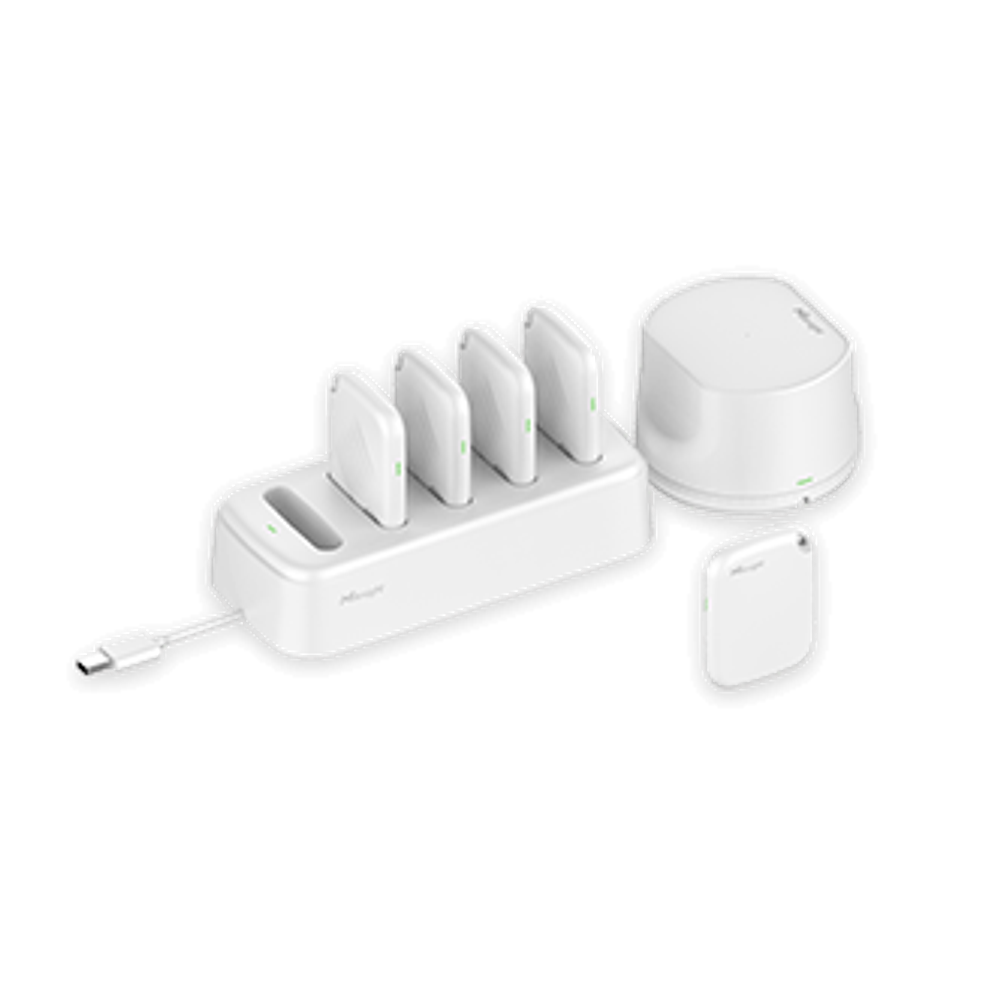

Advanced Staff Detection Kit
1 * UWB anchor（VA05-A）
Works with VA05-T tag for real-time location tracking
Up to 99% accuracy, supports staff trajectory analysis
Ceiling / extended ceiling / lintel mount (requires VB01+VB03)
IP40, operating temp: -20℃ ~ 60℃
Housing: ABS+PC (UL94 V2), white & black optional
5 * Staff-worn UWB tag（VA05-T)
UWB band: 7.75~8.25 GHz (Channel 9)
Bluetooth 5.3
450 mAh rechargeable Li-polymer battery
Battery life: ~3 days (24h operation)
Charging via pogo pin (by VA05-CB)
IP40
1 * 5‑slot charging base（VA05-CB）
Pogo pin charging, 5V/0.2A per slot
Power input: Type-C (DC 5V/2A required)
LED indicator
IP30
