UG63-L08GL-915M
UG63-L08GL-915M

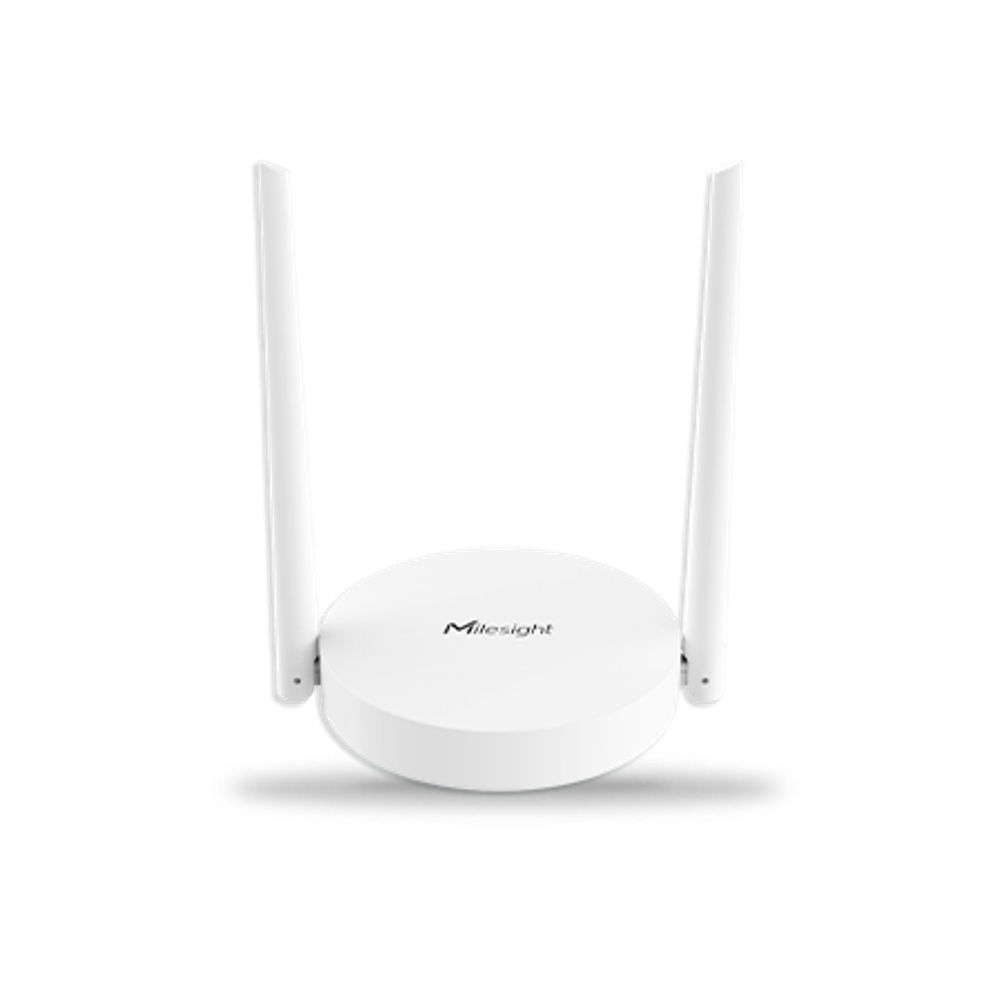

Model: UG63-L08GL-915M
Regular price
$422.00
Sale price
$422.00
Regular price
Available in stock
Open here
8-CH
Wi-Fi Configuration is Supported
1 * 10/100Mbps
Multi Backhaul Backups with Ethernet and Cellular (4G)
High Cost Performance, Suitable for Small Applications
IP30 Rated
Couldn't load pickup availability
- Compact, cost-effective gateway for small-scale deployments
- 8-channel LoRaWAN® connectivity
- External LoRa and cellular antennas
- Ethernet and cellular backhaul
- Supports around 2,000 Class A/B/C devices
- Global LoRaWAN® frequency plans
- Remote configuration and management
| Model | UG63-L08GL-915M |
|---|---|
| Hardware System | |
| CPU | Dual-core 240 MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB Flash |
| LoRaWAN® | |
| Antenna Connector | 1 × External Antenna |
| Channel | 8 (Half-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140 dBm @ 292 bps |
| Tx Power | Max. 27 dBm |
| Supported Devices | Around 2000 Class A/B/C devices |
| Ethernet Interface | |
| Port | 1 × RJ45 |
| Physical Layer | 10/100 Base-T |
