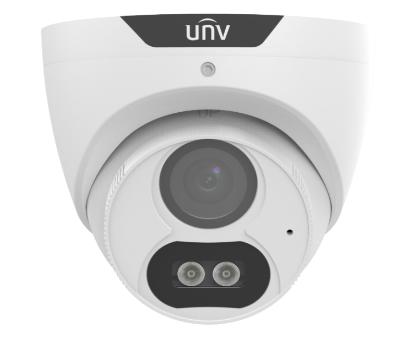

Uniview UAC-T125-AF40M-W 5MP ColorHunter HD Fixed Turret Analog Camera
Uniview UAC-T125-AF40M-W 5MP ColorHunter HD Fixed Turret Analog Camera
Model: UAC-T125-AF40M-W
Out of stock
Send a copy to email:
Open here
5MP@25FPS, TVI/CVI/AHD/CVBS, DWDR, 0.005lux, IR up to 40m (131ft), Built-in Mic, 4.0mm Fixed Lens, DC12V, IP67, Optional: TR-JB03-G-IN, TR-JB07/WM03-G-IN, TR-WM03-D-IN, TR-UP06-IN, TR-A01-IN, TR-UC08-C, TR-UM06-E-IN, TR-SE24-IN, TR-CM24-IN, TR-SE24-A-IN, PWR-DC1201A-UK, PWR-DC1201A-US, PWR-DC1201A-EU
Couldn't load pickup availability
- 5MP high quality imaging
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 color images
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Metal front face and housing
- 3-Axis
Model | UAC-T125-AF28M-W | UAC-T125-AF40M-W |
Sensor | ||
Pixel | 5MP | |
Size | 1/2.7" | |
Minimum illumination | 0.005lux (F1.4, AGC ON) 0 lux (white light on) | |
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 111.5° V: 58.9° D: 134.8° | H: 89.6° V: 48.3° D: 106.4° |
Illuminator | ||
Illuminator | Two white-light illuminators | |
Illumination distance | 40m | |
Lifetime | >/=60,000 hours | |
Video | ||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
Frame rate | TVI: NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps AHD: NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps CVI: NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps CVBS: NTSC:1200*480 PAL:1200*576 | |
Shutter time | NTSC: 1/30s1/50000s PAL: 1/25s-1/50000s | |
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | 24/7 color images | |
Digital noise reduction | 2D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30C to 60C (-22F to 140F) | |
Humidity | </=95% (RH, non-condensing) | |
Surge protection | 4kV | |
Ingress protection | IP67 | |
General | ||
Power | DC12V (±25%), with reverse polarity protection. Max 3.28W | |
Mount | Surface mount (default), optional junction box and wall mount bracket | |
Dimensions | 111mm*96mm (diameter*height) | |
Material | Metal | |
Weight | 356g (0.79lb) | |
Certification | CB, CE, FCC, UL | |
