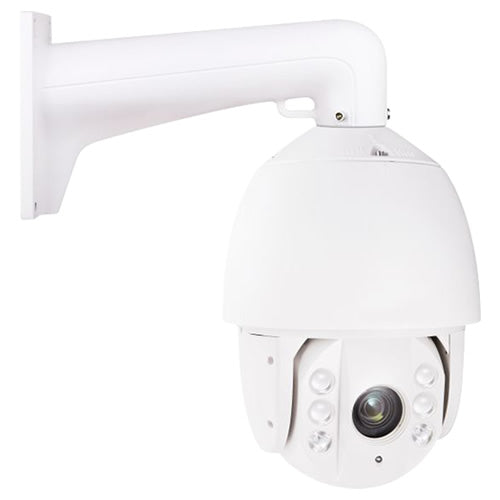

Galaxy 720P HD-TVI 23X V/F Outdoor IR High Speed PTZ Dome Camera
Galaxy 720P HD-TVI 23X V/F Outdoor IR High Speed PTZ Dome Camera
Model: TVIPTZH773X23IR
Regular price
$1,115.05
Sale price
$1,115.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1.3MP CMOS Image Sensor, HD 720P Video Output, Adopts HDTVI Technology, 23X optical zoom, 16X digital zoom, OSD Menu via UTC technology, Privacy Masking, 3D DNR, D-WDR, EIS, 3D intelligent positioning, True Day&Night, 4-92mm V/F Lens, AC24V
Couldn't load pickup availability
- 1.3MP CMOS Image Sensor
- 720P Video Output
- Adopts HDTVI Technology
- 23X optical zoom, 16X digital zoom
- OSD Menu via UTC technology
- Privacy Masking, 3D DNR, D-WDR, EIS
- 3D intelligent positioning
- True Day&Night
| Camera | |
| Image Sensor | 1 / 3"Sensor |
| Effective Pixel | 1490K |
| Horizontal Resolution | 950TVL |
| Signal System | PAL / NTSC |
| Min. Illumination | Color: 0.2Lux@( F1.6,AGC ON) B/W: 0.02Lux@( F1.6,AGC ON) |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| AGC | Auto / Manual |
| S / N Ratio | >= 50dB |
| 3D DNR | Support |
| Digital WDR | Support |
| EIS | Support |
| Backlight compensation | Support |
| Shutter Time | 1-1/10,000s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16X |
| Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| Focus Mode | Auto / Semiautomatic / Manual |
| Lens | |
| Focal Length | 4-92mm, 23X |
| Zoom Speed | Approx.4.0s(Optical Wide-Tele) |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10-1000mm (Wide-Tele) |
| Aperture Range | F1.6-F3.7 |
| Pan and Tilt | |
| Pan / Tilt Range | Pan: 360deg. endless; Tilt: -15deg. ~ 90deg. (Auto Flip ) |
| Pan / Tilt Speed | Pan Manual Speed: 0.1deg. ~160deg./s, Pan Preset Speed: 240deg./s Tilt Manual Speed: 0.1deg. ~120deg./s, Tilt Preset Speed: 200deg./s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the total recording time not less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
| PTZ Position Display | On / Off |
| Preset Freezing | Support |
| Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
| RS-485 communication diagnosis |
Support |
| Infrared | |
| IR Distance | 394ft(120m) |
| IR Intensity | Automatically adjusted, depending on the zoom ratio |
| Input/ Output | |
| Monitor Output | 1 HD TVI output , 1.0V[p-p] / 75ohm, NTSC (or PAL) composite, BNC |
| RS-485 Interface | Half-duplex mode, Pelco-P, Pelco-D protocol |
| UTC function | Self-adaptive PELCO_C |
| General | |
| Menu Language | English, Chinese |
| Power | 24VAC; Max. 20W (Heater On), Max. 12W(Heater Off) |
| Working Temperature | -22°F-149°F(-30 °C-65°C); 90% or less |
| Protection Level | IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Dimension | Dia.8.66"x13.91"(Dia.220x353.4mm) |
| Weight (approx.) | 12.13Ibs(5.5kg) |
