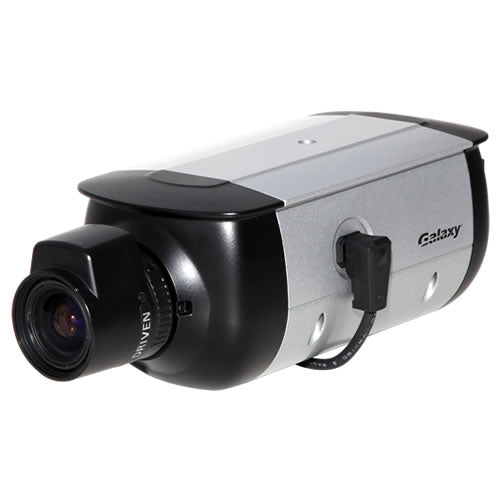

Galaxy 1080P HD-TVI Professional Box Camera
Galaxy 1080P HD-TVI Professional Box Camera
Model: TVIBOX754D
Regular price
$230.55
Sale price
$230.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
HD-TVI, 1080P, 2.2MP, 1/2.9" SONY CMOS, 1 Lux at F1.2 / 0.1 Lux (B/W), WDR, Day & Night, OSD, AWB, Sens up, BLC, ACE, DNR, Motion Detection, Privacy, AC24V / DC12V Dual Power
Couldn't load pickup availability
- Support TVI, AHD, CVI
- 1/2.8 inch SONY CMOS (IMX-291)
- 1 Lux at F1.2 / 0.1 Lux (B/W)
- Upgraded Weatherproof Housing
- WDR (Wide Dynamic Range)
- Day & Night (ICR Option)
- Easy Installation
- Lens not included
| Specification | S77 (EX-SDI) . HBX5 S772 |
| Resolution | 1080P, 720P, |
| Sensor | 1/2.8 inch SONY CMOS (IMX-291) |
| Total Pixels | 1945(H) x 1109(V) = 2.16M |
| Effective Pixels | 1945(H) X 1097(V) = 2.13M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (EX-SDI, HD-SDI) / (TVI, CVI, CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| SENS_UP | OFF / X2 ~ x32 |
| DNR / ACE | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <--> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / FLIP / MOTION / DEFOG | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness / Smart IR / Brightness | ADJUSTABLE (Sharpness : 0 ~ 10 STEP / Smart IR, Brightness : 0 ~ 20 STEP ) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operating (-10°C~+50°C / 30%~80% RH) / Storage (-20°C~+60°C / 20%~90% RH) |
| Power | DC12V/AC24V DualPower |
| Signal Transmission | The distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (500M)) |
