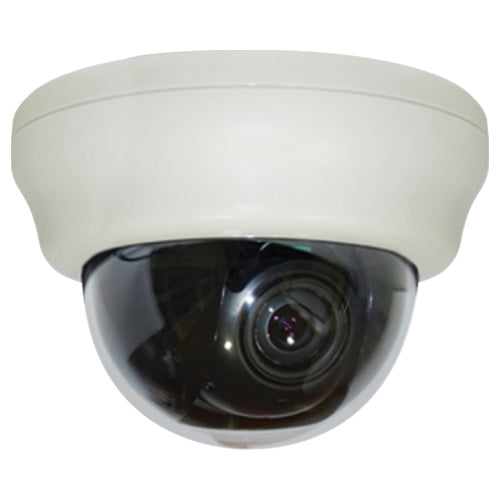

Galaxy 1080P HD-TVI V/F Indoor Dome Camera - 2.8~12mm
Galaxy 1080P HD-TVI V/F Indoor Dome Camera - 2.8~12mm
Model: TVI754W
Regular price
$153.70
Sale price
$153.70
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/2.9"SONY CMOS, HD1080P, 1 Lux at F1.2 / 0.1 Lux (B/W), WDR, Day & Night, OSD, AWB, Sens up, BLC, ACE, DNR, Motion Detection, Privacy, 2.8~12mm Varifocal Lens, DC12V
Couldn't load pickup availability
- 1/2.9 inch SONY CMOS (IMX-222)
- Resolution (1080P, 720P, 720P CROP)
- TVI (Transport Video Interface) / 1 Lux at F1.2 / 0.1 Lux (B/W)
- WDR, Day & Night, OSD, AWB, Sens up, BLC, ACE,
- DNR, Motion Detection, Privacy
- 2.8~12mm Varifocal Lens, DC12V
| Resolution | 1080P, 720P, 720P CROP |
| Sensor | 1/2.9 inch SONY CMOS (IMX-222) |
| Total Pixels | 2000(H) x 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) x 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | TVI / (CVBS: 1.0Vp-p (75ohm) : Option) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| BRIGHTNESS | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLM |
| ACE | OFF / LOW / MIDDLE / HIGH |
| Day & Night | AUTO (Day Night TIME Change) , COLOR , B/W, EXTERN, MDIR (SEARCH Option) |
| PRIVACY | OFF / ON (16 Zone) |
| Motion Detection | OFF / SET |
| D.ZOOM | 0 ~ 127 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| LANGUAGE | ENG, CHN, CHN(S), JPN, KOR |
| SHARPNESS | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM. | RS-485(PELCO-D) |
| SMART IR (IR PRODUCT SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| Operating Temperature/Humidity | -10°C~+50°C / 30%~80% RH |
| Storage Temperature/Humidity | -20°C~+60°C / 20%~90% RH |
| Power | DC12V |
| signal Transmission | The distant difference is occurred according to cable option and other circumstances. (coaxial cable 300M) |
| Lens | 2.8~12mm Varifocal Lens |
