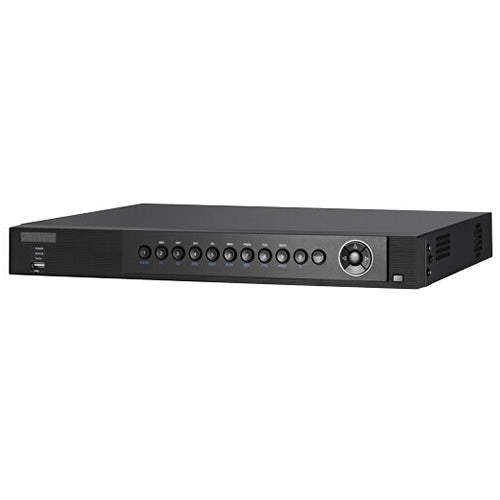

Galaxy Prestige 8CH 5MP Turbo HD-TVI DVR
Galaxy Prestige 8CH 5MP Turbo HD-TVI DVR
Model: TVI-DF1/S-2108
Regular price
$332.05
Sale price
$332.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8CH HD-TVI/Analog/AHD, 2CH IP, 5MP@10fps, 4MP/3MP@15fps, 1080p@30fps, H.264+/H.264, Dual stream, 1CVBS, 1VGA, 1HDMI(up to 4K), Audio 4in/1out, Alarm 8in/4out, Network, 1x SATA up to 6TB, 2x USB2.0, DC12V, SmartPhone Support
Couldn't load pickup availability
- H.264+ & Dual-stream video compression
- Support HD-TVI/analog/AHD/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@5MP resolution non real-time recording
- HDMI output at up to 4K while VGA output at up to 1920x1080P resolution
- Long transmission distance over coax cable
- Support up to 4-ch synchronous playback
| Video/Audio input | |
| Video compression | H.264+/H.264 |
| Analog video input | 8-ch, BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection |
| Turbo HD input | 5 MP20, 5 MP12, 4 MP25, 4 MP30, 3 MP18 , 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25, NTSC, PAL |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 2-ch, Up to 4 MP resolution |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 Kohm) |
| Video/Audio output | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| HDMI/VGA output | VGA: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI: 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Encoding resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame rate | Main stream: 5MP@10fps/ 4MP@15fps/ 3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF@30fps Sub-stream: WD1/4CIF@12fps, CIF/QVGA/QCIF@30fps |
| Video bit rate | 32 Kbps to 10 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 Kohm) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Hard disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| External interface | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 Kohm) (using the 1st audio input) |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB interface | Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0 |
| Serial interface | RS-485 (half-duplex) |
| Alarm in/out | 8/4 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | <= 20 W |
| Working temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W x D x H) | 315 x 242 x 45 mm (12.4 x 9.5 x 1.8 inch) |
| Weight (without HDD) | <= 2 kg (4.4 lb) |
