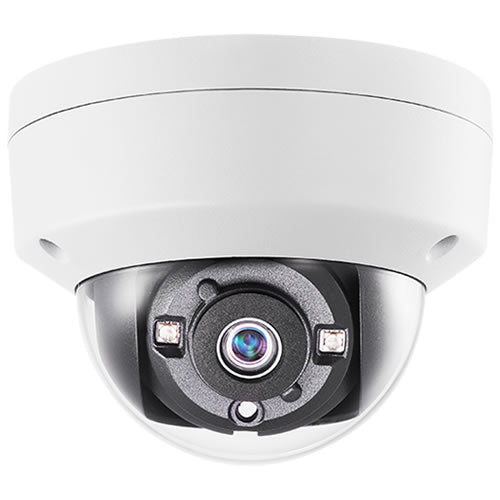

Galaxy 3.0MP HD-TVI True WDR IR Dome Camera - 3.6mm
Galaxy 3.0MP HD-TVI True WDR IR Dome Camera - 3.6mm
Model: TVI-D732W-36
Regular price
$187.05
Sale price
$187.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/3" CMOS, 3.0MP, 1920X1536@15fps, 120dB True WDR, Day/Night, ICR, IP66, IK10, 2 Matrix IR up to 65ft (20m), OSD, UTC, 3.6mm Fixed Lens, DC 12V
Couldn't load pickup availability
- 3MP High Definition
- 2.8mm Fixed Lens
- True 120dB WDR
- 2 Matrix IR up to 65ft (20m)
- DC 12V
- OSD Menu via UTC Technology with Platinum HD-TVI DVR
- IP66 Weatherproof
- Must be Used with HD-TVI 3.0 DVRs
| Camera | |
| Image Sensor | 1/3" CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 2052(H)*1536(V) |
| Min. Illumination | 0.01Lux, 0 Lux with IR |
| Shutter Speed | 1/30 (1/25)s to 1/50,000 s |
| Lens | 2.8mm |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 1920x1536@18fps |
| HD Video Output | 1 HD-TVI Output |
| S/N Ratio | More than 62dB |
| Menu | |
| AGC | Support |
| D/N Mode | Color/BW/Smart |
| White Balance | ATW/MWB |
| BLC | Support |
| Function | 120dB True WDR, DNR, Mirror, SMART IR |
| General | |
| Working Temperature /Humidity |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | Max. 5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 65ft (20m) |
| Impact Protection | IK10 |
| Dimensions | 4.4"x3.3" (111.0x82.5 mm) |
| Weight | 0.8lb(350g) |
