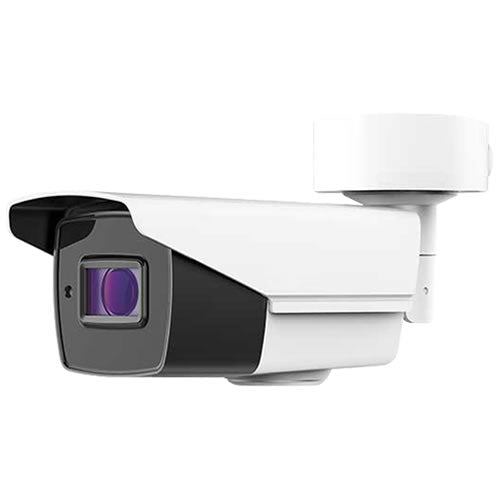

Galaxy Prestige 5MP HD-TVI Motorized VF Matrix IR Bullet Camera - 2.8~12mm
Galaxy Prestige 5MP HD-TVI Motorized VF Matrix IR Bullet Camera - 2.8~12mm
Model: TVI-C815F-3ZAIR
Regular price
$259.55
Sale price
$259.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
5MP CMOS, 2592 x 1944 @ 20fps, True Day/Night, OSD menu, DNR, Smart IR, ICR, IP67, Matrix IR up to 131ft (40m), Up the coax, 2.8 to 12 mm motorized vari-focal lens, DC 12V
Couldn't load pickup availability
- 5 megapixel high-performance CMOS
- HD analog output, up to 5 MP resolution
- 2.8 to 12 mm motorized vari-focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 40 m IR distance
- IP67
- Up the Coax
| Camera | |
| Image Sensor | 5 MP CMOS image sensor |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/30 s to 1/50,000 s |
| Lens | Motorized VF lens; 2.8 to 12 mm |
| Horizontal Field of View | 27.7deg. to 86.8deg. (2.8 to 12 mm) |
| Lens Mount | Dia.14 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0deg. to 360deg.; Tilt: 0deg. to 90deg.; Rotate: 0deg. to 360deg. |
| Synchronization | Internal synchronization |
| Video Frame Rate | 2592 x 1944 @ 20fps |
| HD Video Output | 1 HD analog output |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| BLC | Support |
| Language | English/Chinese |
| Functions | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 V DC+/-20% |
| Power Consumption | Max. 6 W |
| Protection Level | IP67 |
| IR Range | Up to 40 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 92 mm x 84.8 mm x 269.6 mm (3.62" x 3.34" x 3.34") |
| Weight | Approx. 900 g (1.98 lb.) |
