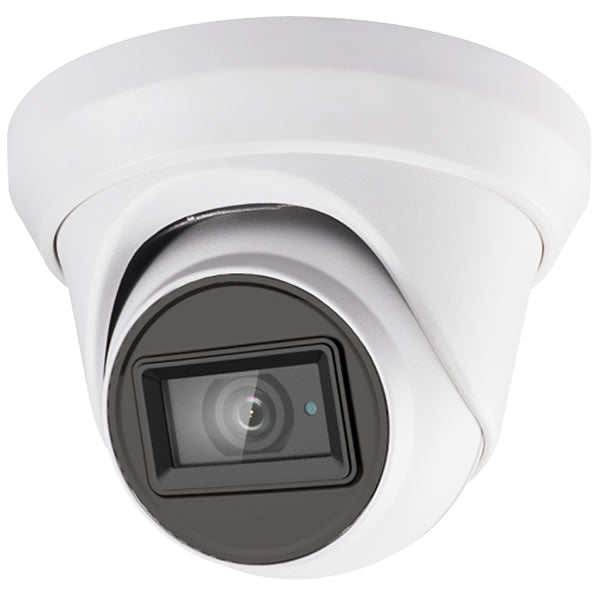

Galaxy Platinum HD-TVI 4K 4-in-1 IR Turret Camera - 2.8mm
Galaxy Platinum HD-TVI 4K 4-in-1 IR Turret Camera - 2.8mm
Model: TVI-C758F-3IR
Regular price
$143.55
Sale price
$143.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8.3MP, 3840x2160@12.5fps, 105dB DWDR, TVI/CVI/AHD/960H, Day&Night(ICR), Smart IR, IR up to 98ft (30m), OSD/UTC, IP67, 2.8mm FixedLens, DC12V
Couldn't load pickup availability
- 8.29 MP high performance CMOS
- 3840 x 2160 resolution
- 2.8 mm fixed lens
- EXIR 2.0, smart IR, up to 30 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (UTC?C)
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Min. Illumination | Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| IR Range | Up to 30 m |
| Video Output | 1 HD analog output |
| Synchronization | Internal synchronization |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 102.2° |
| Lens Mount | M16 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° |
| White Balance | Auto/Manual |
| Image | |
| BLC | Yes |
| Menu | |
| AGC | Yes |
| DWDR | 105 dB |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 5.3 W |
| Dimensions | Ø109.82 mm × 91.03 mm (Ø 4.32" × 3.6" ) |
| Weight | Approx. 320 g (0.71 lb.) |
| Material | Metal |
| Operating Conditions | ?40 °C to 60 °C (?40 °F to 140 °F), humidity: 90% or less (non?condensation) |
| Communication | Up the coax, Protocol: UTC?C (TVI output) |
| Protection (General) | IP67 |
