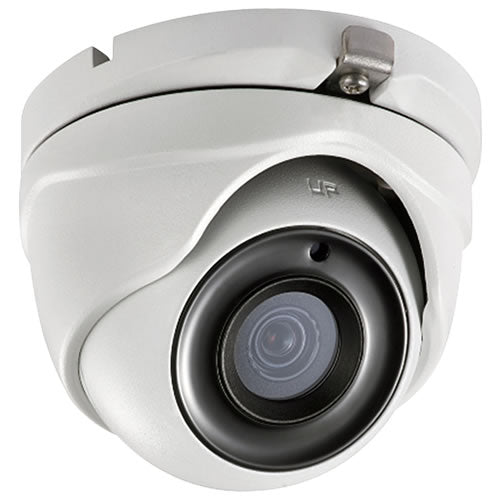

Galaxy Prestige5MP HD-TVI Matrix IR Turret Camera - 2.8mm
Galaxy Prestige5MP HD-TVI Matrix IR Turret Camera - 2.8mm
Model: TVI-C715F-MIR
Regular price
$85.55
Sale price
$85.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
5MP CMOS, 2592 x 1944 @ 20fps, True Day/Night, OSD menu, DNR, Smart IR, ICR, IP67, Matrix IR up to 65ft (20m), Up the coax, 2.8mm Fixed Lens, DC 12V
Couldn't load pickup availability
- 5 megapixel high-performance CMOS
- HD analog output, up to 5 MP resolution
- 2.8 mm fixed focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20 m IR distance
- IP67
- Up the Coax
| Camera | |
| Image Sensor | 5 MP CMOS image sensor |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Horizontal Field of View | 86.5deg. (2.8 mm), 70.1deg. (3.6 mm), 46deg. (6 mm) |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0deg. to 360deg.; Tilt: 0deg. to 75deg.; Rotate: 0deg. to 360deg. |
| Synchronization | Internal synchronization |
| Video Frame Rate | 2592 x 1944 @ 20fps |
| HD Video Output | 1 turbo HD output |
| Menu | |
| AGC | Support |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| BLC | Support |
| Language | English/Chinese |
| Functions | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Power Supply | 12 V DC+/-30% |
| Power Consumption | Max. 5 W |
| Protection Level | IP67 |
| IR Range | 10 to 20 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | 91 mm x 82.6 mm x 68.3 mm (3.58" x 3.25" x 2.69") |
| Weight | Approx. 350 g (0.77 lb) |
