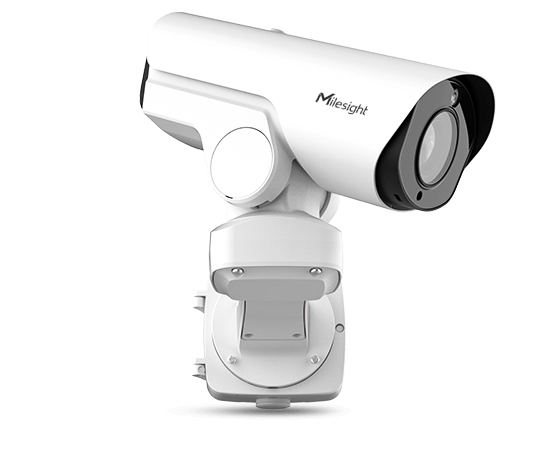

MileSight AI Road Traffic PTZ Bullet Plus Camera
MileSight AI Road Traffic PTZ Bullet Plus Camera
Model: TS5367-X12PE/740/M1
Regular price
$2,503.13
Sale price
$2,503.13
Regular price
Available in stock
Open here
* White LED can work as alarm action
* Support evidence camera linkage
* Support LPR smart search
* Support SD card, up to 1TB
* PTZ Position Display, 3D positioning, 300 Presets
* 360° Pan Range; Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
* -45°~30° / Tilt Range; Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Couldn't load pickup availability
- Attributes Identification: Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, ADR
- Attributes Event Detection
- Black List/ White List/ Visitor Mode
- Vehicle counting based on vehicle type
- Violation Management: No Plate, Reverse Driving
- White LED can work as alarm action
- Support evidence camera linkage
- Support LPR smart search
- Support SD card, up to 1TB
- PTZ Position Display, 3D positioning, 300 Presets
- 360° Pan Range; Pan Manual Speed: 0.1°~60°/s, Preset Speed: 60°/s
- -45°~30° / Tilt Range; Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
- Resolution: 5MP 2592*1944
- Frame Rate: 30fps
- Lens: AF 5.3~64mm, 12X optical zoom
- Illumination Distance: 50m
- Protection level: IP66
- Interface: Alarm I/O *(2/2), Audio I/O, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V, RS485
- Flexible pan, tilt and zoom
- AI-powered LPR
- Traffic violation detection
| Series | Intelligent Traffic Series |
|---|---|
| Product Name | AI Road Traffic PTZ Bullet Plus Camera |
| Main Model Name | TS5367-X12PE |
| Order Model Name | TS5367-X12PE/740/M1 |
| Camera | |
| TS4467-X20RPE (4MP) | TS5367-X12PE (5MP) |
| ImageSensor | |
| 1/1.8″ProgressiveScanCMOS | 1/2.8″ProgressiveScanCMOS |
| Min.Illumination | |
| Color:0.002Lux@F1.6 B/W:0LuxwithIRon | Color:0.008Lux@F1.6 B/W:0LuxwithIRon |
| WDR | |
| 120dBSuperWDR | 120dBSuperWDR |
| ShutterTime | |
| 1/100000s~1s | 1/100000s~1s |
| DigitalZoom | |
| 16X | 16X |
| Day/NightMode | |
| Day/Night/Auto/Customize/Schedule | Day/Night/Auto/Customize/Schedule |
| IlluminationDistance | |
| Upto140m | Upto140m |
| S/N | |
| >55dB | >55dB |
| Lens | |
| 6.4~128mm,20XOpticalZoom | 5.3~64mm,12XOpticalZoom |
| ZoomSpeed | |
| Approx5s(Wide-Tele) | Approx4s(Wide-Tele) |
| FieldofView | |
| H60°~H3°/D67°~D4°/V37°~V1° | H57°~H4°/D69°~D5°/V44°~V1° |
| FocusControl | |
| Auto/Semi-Auto/Manual | Auto/Semi-Auto/Manual |
| MinimumWorkingDistance | |
| 1000/1500mm(Wide/Tele) | 1000/1500mm(Wide/Tele) |
| Aperture | |
| F1.6~F4.0 | F1.6~F2.8 |
| IrisControl | |
| Auto | Auto |
| RoadTraffic Management | |
| 200km/h | 120km/h |
| RecognitionAccuracy | |
| >95% | >95% |
| Coverage | |
| 2lanes | 2lanes |
| CountryRegionSupported | |
| Morethan80countriesandregions | Morethan80countriesandregions |
| ANPRDistance | |
| Upto240mduringtheday; Upto90mduringthenightwithillumination | Upto150mduringtheday; Upto80mduringthenightwithillumination |
| AttributesIdentification | |
| PlateColor,VehicleType,VehicleColor,VehicleBrand,No-plateVehicleCapture,VehicleDirectionDetection, | PlateColor,VehicleType,VehicleColor,VehicleBrand,No-plateVehicleCapture,VehicleDirectionDetection, |
| SmartTrafficFunction | |
| EvidenceCameraLinkage,VehicleCountingBasedonVehicleType,SpecificLaneManagement | EvidenceCameraLinkage,VehicleCountingBasedonVehicleType,SpecificLaneManagement |
| White/BlackList | |
| Upto20,000recordsinsidethecamera | Upto20,000recordsinsidethecamera |
| LPRSmartSearch | |
| Support | Support |
| PTZ | |
| 360°endless/PanManualSpeed:0.1°~50°/s,PanPresetSpeed:50°/s | 360°endless/PanManualSpeed:0.1°~50°/s,PanPresetSpeed:50°/s |
| TiltRange/TiltSpeed | |
| -45°~30°/TiltManualSpeed:0.1°~30°/s,TiltPresetSpeed:30°/s | -45°~30°/TiltManualSpeed:0.1°~30°/s,TiltPresetSpeed:30°/s |
| ProportionalZoom | |
| Support | Support |
| PresetQuantity | |
| 300 | 300 |
| Patrol | |
| 8Patrols,upto48presetseachpatrol | 8Patrols,upto48presetseachpatrol |
| Pattern | |
| 4Patterns | 4Patterns |
| AutoTracking | |
| Support | Support |
| PowerOffMemory | |
| Support | Support |
| OtherFunction | |
| AutoScan,AutoHome,PresetFreezing,3DPositioning,PTZLimits,InitialPosition | AutoScan,AutoHome,PresetFreezing,3DPositioning,PTZLimits,InitialPosition |
| Video | |
| 2688x1520 | 2592x1944 |
| PrimaryStream | |
| 60Hz:60fps@(2688x1520, 2304x1296,1920x1080,1280x720) 50Hz:50fps@(2688x1520,2304x1296,1920x1080, 1280x720) | 60Hz:30fps@(2592x1944),30fps@(2048x1536), 30fps@(1920x1080,1280x960,1280x720,704x576) 50Hz:25fps@(2592x1944),25fps@(2048x1536), 25fps@(1920x1080,1280x960,1280x720,704x576) |
| SecondaryStream | |
| 60Hz:30fps@(704x576,640x480,640x360, 352x288,320x240) 50Hz:25fps@(704x576,640x480,640x360, 352x288,320x240) | 60Hz:30fps@(704x576,640x480,640x360,352x288, 320x240,320x192,320x180) 50Hz:25fps@(704x576,640x480,640x360,352x288, 320x240,320x192,320x180) |
| TertiaryStream | |
| 60Hz:30fps@(1920x1080,1280x720,704x576, 640x480,640x360,320x240) 50Hz:25fps@(1920x1080,1280x720,704x576, 640x480,640x360,320x240) | 60Hz:30fps@(1920x1080,1280x720,704x576, 640x480,640x360,320x240,320x192,320x180) 50Hz:25fps@(1920x1080,1280x720,704x576, 640x480,640x360,320x240,320x192,320x180) |
| VideoCompression | |
| H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | |
| 16Kbps~16Mbps(CBR/VBRAdjustable) | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| PrivacyMasking | |
| Upto8Areas(MaskAreaandMosaicAreaareoptional) | Upto8Areas(MaskAreaandMosaicAreaareoptional) |
| ROI | |
| Upto8areas | Upto8areas |
| ImageSetting | |
| Brightness/Contrast/Saturation/Sharpness | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| 1*RJ4510M/100MEthernetPort | 1*RJ4510M/100MEthernetPort |
| AudioI/O | |
| 1/1 | 1/1 |
| AlarmI/O | |
| 2/2 | 2/2 |
| RS485 | |
| Support | Support |
| Network | |
| NAS(SupportNFS,SMB/CIFS),ANR | NAS(SupportNFS,SMB/CIFS),ANR |
| Protocol | |
| IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP,UPnP, Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL | IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP,UPnP, Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL |
| Audio | |
| G.711/AAC/G.722/G.726 | G.711/AAC/G.722/G.726 |
| AudioSamplingRate | |
| 8/16/32/44.1/48KHz | 8/16/32/44.1/48KHz |
| AudioBitRate | |
| 16~256kbps | 16~256kbps |
| Two-wayAudio | |
| Support | Support |
| System | |
| SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| AdvancedFunction | |
| BLC,HLC,2DDNR,3DDNR,Defog,AWB,IPAddressFiltering, AGC,Anti-flicker,CorridorMode,Deblur,Watermark | BLC,HLC,2DDNR,3DDNR,Defog,AWB,IPAddressFiltering, AGC,Anti-flicker,CorridorMode,Deblur,Watermark |
| SIP/VoIPSupport | |
| Yes,Voice&Video-over-IP | Yes,Voice&Video-over-IP |
| EventTrigger | |
| Black/WhiteList,AttributesEvent,MotionDetection,NetworkDisconnection,ExternalInput,AudioAlarm, etc. | Black/WhiteList,AttributesEvent,MotionDetection,NetworkDisconnection,ExternalInput,AudioAlarm, etc. |
| EventAction | |
| FTPUpload,SMTPUpload,SDCardRecord,ExternalOutput,SIPPhone,WhiteLED,PTZMotion,HTTP Notification,etc. | FTPUpload,SMTPUpload,SDCardRecord,ExternalOutput,SIPPhone,WhiteLED,PTZMotion,HTTP Notification,etc. |
| SystemCompatibility | |
| API,HTTP,TCP,ONVIFProfileG&M&S&T | API,HTTP,TCP,ONVIFProfileG&M&S&T |
| General | |
| WorkingTemperature | -40℃~60℃ |
| WorkingHumidity | 0~90%(Non-condensing) |
| PowerSupply | PoE(802.3at)/DC12V/3A±10% |
| PowerConsumption | 13WMAX/23WMAX(WithIRon) |
| WeatherProof | UptoIP66-ratedforWeather-resistantPerformance |
| Weight | 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2Years/3Years(Optional) |
