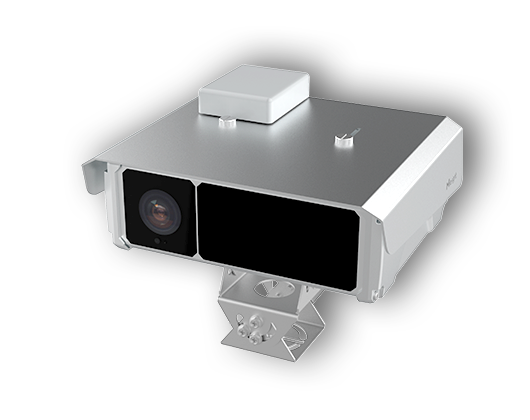

MileSight SingleVision TrafficX Camera
MileSight SingleVision TrafficX Camera
Model: TS5020-GIE/LTE-EU/850
Regular price
$10,622.81
Sale price
$10,622.81
Regular price
Available in stock
Open here
* Support 4G LTE(B1/B3/B7/B8/B20/B28)
* Only-lens for ANPR Image
* Capture both clear license plate and vehicle by Frame Parity Flashing technology
* Support 1TB SD Card
* Built-in GPS Module
* TPM2.0 Chip
* Operational Temperature: -40℃ ~70℃
Couldn't load pickup availability
- Attributes Identification: Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand
- Attributes Event Detection
- Violation Management: No Plate, Reverse Driving, Phone Calling Detection, Safety Belt Detection
- Support 4G LTE(B1/B3/B7/B8/B20/B28)
- Only-lens for ANPR Image
- Capture both clear license plate and vehicle by Frame Parity Flashing technology
- Support 1TB SD Card
- Built-in GPS Module
- TPM2.0 Chip
- Operational Temperature: -40℃ ~70℃
- Resolution: ANPR: 5MP 2464*2056
- Frame Rate: 60fps
- Lens: Motorized 15~50mm
- Illumination Distance: 60m
- Protection level: IP67, IK10
- Interface: Optoisolated Input: 4, Strobe Output: 2, Relay Output: 1, 1*RJ45 10M/100M/1000M Ethernet Port, RS485*2
- Global shutter for sharp snapshots
- High-speed ANPR capture
- AI traffic violation recognition
| Series | Intelligent Traffic Series |
|---|---|
| Product Name | SingleVision TrafficX Camera |
| Main Model Name | TS5020-GIE |
| Order Model Name | TS5020-GIE/LTE-EU/850 |
| Model | TS5020-GIE (5MP*1) |
| Camera | |
| Name | SingleVisionTrafficXCamera |
| ImageSensor | Color,2/3"GlobalShutter |
| Min.Illumination | Color:0.001Lux@F1.4 |
| ShutterTime | 30us-5000us |
| Day/NightMode | Day/Night/Auto |
| Supplement Light | |
| IR | IRStrobeLight(15lightbeads@850nm,15lightbeads@740nm) |
| IR Distance | 60m |
| IRWave Length | 850nm(Default),740nm(Optional) |
| RoadTraffic Management | |
| Max.ANPRRange | Upto50m |
| Max.VehicleSpeed | 250km/h |
| Coverage | Recommendedfor2~3lanes |
| CaptureRate | Upto99% |
| RecognitionAccuracy | Upto98% |
| CountryRegion Supported | Morethan74countriesandregions |
| Attributes Identification | PlateColor,VehicleType,VehicleColor,VehicleBrand |
| ViolationManagement | ReverseDriving,No-plateVehicleCapture, VehicleAttributesEventDetection |
| White/BlackList | Upto20,000recordsinsidethecamera |
| LPRSmartSearch | Support |
| Interface | |
| Ethernet | 1*RJ4510/100/1000MbpsEthernetPort |
| RS485 | 2*RS485ports,baudrateupto115200bps |
| PowerOutput | 1*DC12VOutput |
| AlarmInput | 4*Opto-isolatedDigitalInputs |
| AlarmOutput | 1*RelayOutput |
| StrobeOutput | 2*StrobeOutput |
| STNCIN | 1*AC24VSynchronizationInput |
| Lens | 15-50mm,Motorizedzoomandfocus |
| Mount | Custommount |
| FieldofView | HorizontalFOV41.4°to10.3°,VerticalFOV26.8°to8.42°,DiagonalFOV32°to13.3° |
| Video | |
| Max.Resolution | 2448x2048 |
| Max.FPS | 60fps |
| VideoCompression | H.265/H.264/MJPEG |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| ImageSetting | Brightness/Contrast/Saturation |
| PrivacyMasking | Upto8Areas |
| Wireless Network (Optional) | |
| Cellular | 4GLTE NA:B2/B4/B5/B12/B13/B25/B26 EU:B1/B3/B7/B8/B20/B28 AU:B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIMCard | NanoSIM |
| System | |
| SystemCompatibility | API,HTTP,TCP,MQTT,ONVIFProfileG&M&S&T |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| General | |
| GPS | Built-inHigh-accuracyGPSModule |
| WorkingTemperature | -40°C~70°C |
| WorkingHumidity | 0~95%(Non-condensing) |
| PowerConsumption | Min.:6.7W Max.:26.0W |
| PowerSupply | 24VDC/24VAC |
| Weight | 4.30kg 6.43kg(Withpackage) |
| Dimensions | 295*245*141mm |
| Warranty | 3Years |
| Certifications | |
| EMC | CE-EMC(EN55032,EN55035),FCC(PART15B),RCM(AS/NZSCISPR32:2015+A1(2020)) |
| RF | CE-RED(EN301489-1,EN301489-19,EN301489-52,EN301908-1,EN301908-13, EN303413,EN50663,EN62479) RCM(AS/CAS042.1,AS/CAS042.4,AS/NZS2772.2) |
| Safety | CE-LVD(ENIEC62368-1),RCM(ASNZS62368) |
