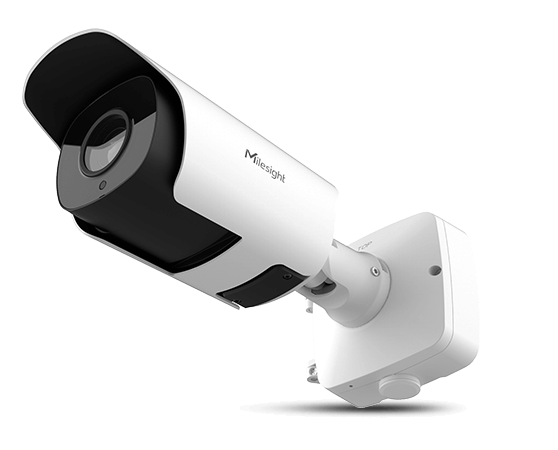

MileSight AI Road Traffic Pro Bullet Plus Camera
MileSight AI Road Traffic Pro Bullet Plus Camera
Model: TS4466-X4RIPG1/M2/A66
Regular price
$1,940.63
Sale price
$1,940.63
Regular price
Available in stock
Open here
* Camera Working Temperature: -40℃~60℃
* Support evidence camera linkage
* Support LPR smart search
* Support 1TB SD Card
Couldn't load pickup availability
- Attributes Identification: Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, ADR
- Attributes Event Detection
- Black / White List up to 20000 records
- Vehicle counting based on vehicle type
- Violation Management: No Plate, Reverse Driving
- Camera Working Temperature: -40℃~60℃
- Support evidence camera linkage
- Support LPR smart search
- Support 1TB SD Card
- Resolution: 4MP 2688*1520
- Frame Rate: 60fps
- Lens: AF 8~32mm, 4X optical zoom
- WDR: Support
- Illumination Distance: 50m
- Protection level: IP67, IK10
- Interface: Alarm Input:2, Alarm Output:2(1 relay output; 1 open collector output, max. 12V DC/10mA), Audio I/O, RS485, Wiegand, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V
- Traffic violation detection
- AI-powered LPR
- Traffic flow statistics
| Series | Intelligent Traffic Series |
|---|---|
| Product Name | AI Road Traffic Pro Bullet Plus Camera |
| Main Model Name | TS4466-X4RIPG1 |
| Order Model Name | TS4466-X4RIPG1/M2/A66 |
| AI Road Traffic Pro Bullet Plus Camera | |
| Model | TS4466-X4RIPG1 (4MP) |
| Camera | |
| Appearance | Appearance |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6, B/W: 0Lux with IR on |
| WDR | Support |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 50m |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Aperture | F1.6~F1.7 |
| P-Iris | Support |
| Road Traffic Management | |
| Max. Vehicle Speed | 160km/h |
| Capture Rate | 99% |
| Recognition Accuracy | 98% |
| Coverage | 2 lanes |
| ANPR Distance | Up to 40m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting |
| White/Black List | Up to 20,000 records inside the camera |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |
| RS485 | 1 |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | Min.: 3.9W (DC 12V), 4.9W(PoE) Max.: 14.8W (DC 12V), 17.8W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
