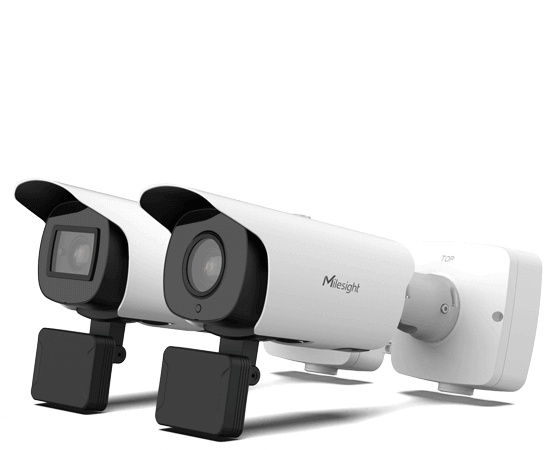

MileSight AI Road Traffic Radar Pro Bullet Plus Camera
MileSight AI Road Traffic Radar Pro Bullet Plus Camera
Model: TS4466-RFIVPG1/2.8-12mm/M2/A66
Regular price
$2,958.75
Sale price
$2,958.75
Regular price
Available in stock
Open here
* Speed Detection by Radar
* Camera Working Temperature: -40℃~60℃
* Support evidence camera linkage
* Support LPR smart search
* Support 1TB SD Card
Couldn't load pickup availability
- Attributes Identification: Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, ADR
- Attributes Event Detection
- Black / White List up to 20000 records
- Vehicle counting based on vehicle type
- Violation Management: No Plate, Reverse Driving, Over-speed/ Low-speed Alarm
- Speed Detection by Radar
- Camera Working Temperature: -40℃~60℃
- Support evidence camera linkage
- Support LPR smart search
- Support 1TB SD Card
- Resolution: 4MP 2688*1520
- Frame Rate: 60fps
- Lens: Motorized 2.8~12mm
- WDR: Support
- Illumination Distance: 30m
- Protection level: IP67
- Interface: Alarm Input:2, Alarm Output:2(1 relay output; 1 open collector output, max. 12V DC/10mA), Audio I/O, RS485, Wiegand, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V
- Real-time speed measurement
- Radar-video fusion
- On-edge AI-powered LPR
| Series | Intelligent Traffic Series |
|---|---|
| Product Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Main Model Name | TS4466-RFIVPG1 |
| Order Model Name | TS4466-RFIVPG1/2.8-12mm/M2/A66 |
| AI Road Traffic Radar Pro Bullet Plus Camera | |
| Model | TS4466-RFIVPG1 (4MP) |
| Camera | |
| Appearance | Appearance |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2, B/W: 0Lux with IR on |
| WDR | Support |
| Lens | |
| Illumination Distance | Up to 30m |
| Lens | Motorized 2.8~12mm@F1.2 |
| Field of View | H114°~H45°/ D116°~D51°/ V57°~V25° |
| P-Iris | Support |
| Road Traffic Management | |
| Max. Vehicle Speed | 160km/h |
| Capture Rate | 99% |
| Coverage | 2 lanes |
| ANPR Distance | Up to 20m |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions. |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting |
| White/Black List | Up to 20,000 records inside the camera |
| Radar | |
| Working Frequency | 60GHz, 61~62GHz |
| Tracking Target | Up to 32 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm Input | 2 |
| Alarm Output | 2 (1 relay output; 1 open collector output, max. 12V DC/10mA) |
| Wiegand | 1 |
| RS485 | 1 |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| Network | |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| System | |
| System Compatibility | API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| General | |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | Min.: 6.6W (DC 12V), 7.9W(PoE) Min.: 7.7W (DC 12V), 9.2W(PoE) Max.: 17.2W (DC 12V), 20.4W(PoE) Max.: 19W (DC 12V), 21W(PoE) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
