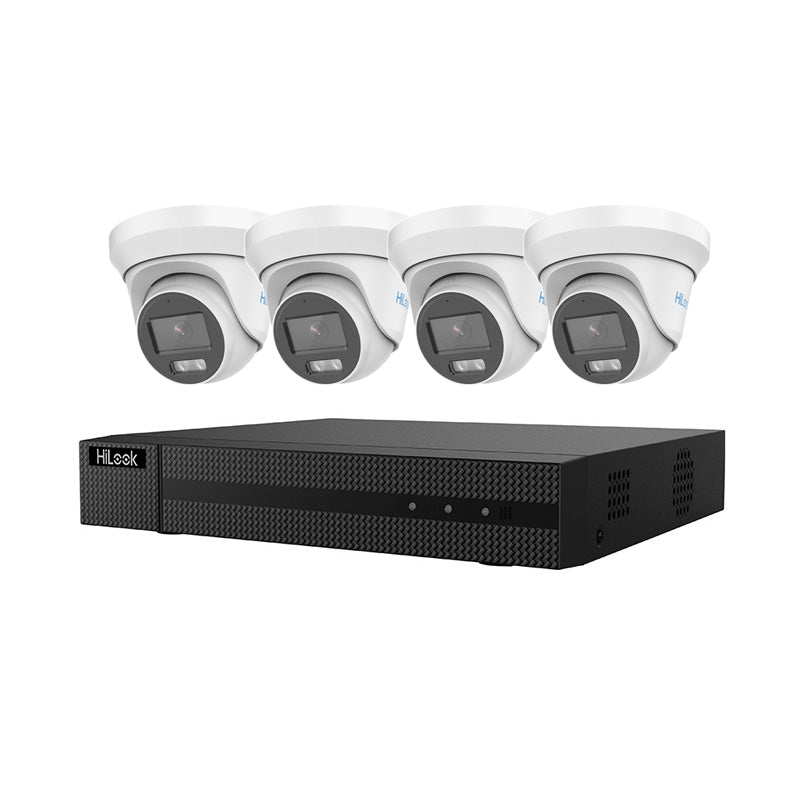

Kit model

TK-4145TC-MC

DVR model

DVR-204U-M1

Camera model

4 * THC-T259-MS

Camera

Image Sensor

3K CMOS

Signal System

PAL/NTSC

Resolution

2960 (H) × 1665 (V)

Frame Rate

TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps AHD: 4 MP @ 25 fps/30 fps

CVI: 4 MP @ 25 fps/30 fps

CVBS: PAL/NTSC

Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens

2.8 mm fixed focal lens

Field of View

2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°

Lens Mount

M12

Light Alarm

Solid Light Alarm (White Light)

Day ? Night

24/7 Color Imaging

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


White Light

Auto/Off

Image Mode

STD/HIGH-SAT/HIGHLIGHT

AGC

Yes

Day/Night Mode

Color

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR,BLC,HLC,Global

Noise Reduction

2D DNR

Language

English

Function

Brightness,Sharpness,Anti-Banding

Lighting Mode

White Light

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 4.2 W

Protection Level

IP66

Material

Metal

White Light Range

Up to 40 m

Dimension

? 127.92 mm × 97.8 mm (? 5.04" × 3.86")

Weight

Approx. 480 g (1.06 lb.)

DVR

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1. Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 10 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch (up to 6-ch) Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

HDTVI Input

8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps,

720p@50 fps, 720p@30 fps, 720p@25 fps

AHD Input

5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps,

720p@25 fps, 720p@30 fps

HDCVI Input

4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps,

720p@30 fps

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 K?)

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 K?)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

Synchronous Playback

4-ch

Network

Total Bandwidth

96 Mbps

Remote Connection

32

Network Protocol

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,

HTTPS, ONVIF

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interfac

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Alarm In/Out

N/A

USB Interface

2 × USB 2.0

General

Power Supply

12 VDC, 1.5 A

Consumption

</= 15 W (without HDD)

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight

</= 1.16 kg (without HDD, 2.6 lb.)
