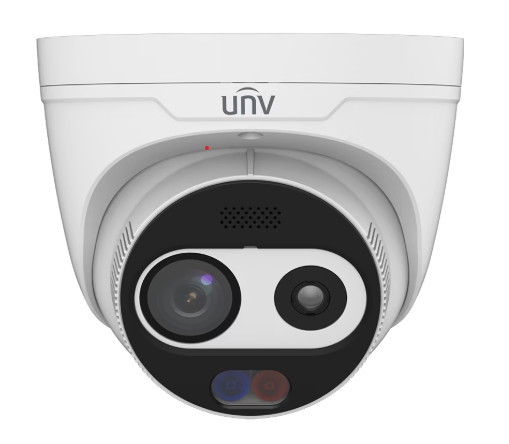

Uniview TIC3612SA-F7-4F6AC-I1 4MP Thermal & Optical Dual-spectrum Turret Network Camera
Uniview TIC3612SA-F7-4F6AC-I1 4MP Thermal & Optical Dual-spectrum Turret Network Camera
Model: TIC3612SA-F7-4F6AC-I1
Regular price
$1,135.35
Sale price
$1,135.35
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4mp, Ultra 265, H.265, H.264, Max 2688*1520@30fps in the optical module, Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
Couldn't load pickup availability
- Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
- 1/2.8? target surface, high sensitivity sensor, satisfy the need of starlight monitoring
- Thermal module support reliable fire detection, smoking detection and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking which highlights the abnormal temperature, and link to alarm
- Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirm
- Support picture in picture mode, real time contrast live, more convenient and clear
- Support audio and light alarm, with red and blue warning lights built in
- Ultra 265, H.265, H.264, MJPEG
- Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
- DC12V±25% or PoE power supply
- Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
| TIC3612SA-F7-4F6AC-I1 | ||||||||
| Channel | Optical | Thermal | ||||||
| Camera | ||||||||
| Sensor | 1/2.8? CMOS | Vanadium oxide uncooled focal plane arrays | ||||||
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
N/A | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | N/A | ||||||
| Original Resolution-Thermal | N/A | 256*192 | ||||||
| NETD | N/A | < 50 mk @ F1.0 @ 25 C | ||||||
| Shutter | Auto/Manual,1 to 1/100000 s | Auto/Manual,1 to 1/100000 s | ||||||
| WDR | 120 dB | 120 dB | ||||||
| S/N | >56 dB | >56 dB | ||||||
| Lens | ||||||||
| Focal Length | 6.0 mm | 7.0 mm | ||||||
| Iris | F1.6 | F1.0 | ||||||
| Field of View (H) | 49.1° | 25.2° | ||||||
| Field of View (V) | 26.9° | 19.3° | ||||||
| Field of View (D) | 60.4° | 31° | ||||||
| DORI | ||||||||
| DORI Distance (Detect) | 135.0m(442.9ft) | N/A | ||||||
| DORI Distance (Observe) | 54.0m(177.2ft) | N/A | ||||||
| DORI Distance (Recognize) | 27.0m(88.6ft) | N/A | ||||||
| DORI Distance (Identify) | 13.5m(44.3ft) | N/A | ||||||
| Illuminator | ||||||||
| Wavelength | 750 nm | N/A | ||||||
| Illumination Distance (IR) | 30m | N/A | ||||||
| Light On/Off Control | Auto/Manual | N/A | ||||||
| Video | ||||||||
| Frame Rate | 4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
| U-code | Support | Support | ||||||
| ROI | Support | Support | ||||||
| Video Stream | Triple Streams | Triple Streams | ||||||
| OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | N/A | ||||||
| Image | ||||||||
| Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
| Defog | Digital Defog | N/A | ||||||
| Palette-Thermal | N/A | white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | ||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
| Smoke and Fire Detection | Support | N/A | ||||||
| Temperature Measurement Accuracy | ±8 C (±14.4 F) or ±8% (whichever is greater) | |||||||
| Temperature Range | Selectable between -20 C to 150 C (-4 F to 302 F) and 100 C to 550 C (212 F to 1022 F) | |||||||
| Temperature Detection-Thermal | N/A | Thermal channel supports rule-based temperature measurements.Supports real-time display of the highest, lowest, and average temperatures in the rule-defined area on the screen | ||||||
| Smoking Detection-Thermal | N/A | Thermal channel supports the detection of smoking behavior in the environment | ||||||
| Events | ||||||||
| Fire Detection | N/A | Support | ||||||
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | N/A | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
| Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
| Two-way Audio | Support | Support | ||||||
| Suppression | Support | Support | ||||||
| Sampling Rate | 16KHZ | 16KHZ | ||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
| Network Storage | ANR | ANR | ||||||
| Network | ||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
| Interface | ||||||||
| Built-in Mic | Support | Support | ||||||
| Built-in Speaker | Support | Support | ||||||
| Audio I/O | 1 Input: impedance 1 kOhm, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ohm, amplitude 2 V [p-p] | 1 Input: impedance 1 kOhm, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ohm, amplitude 2 V [p-p] | ||||||
| Alarm I/O | 2/2 | 2/2 | ||||||
| Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||||
| Video Output | N/A | 1 BNC (For debugging) | ||||||
| General | ||||||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | DC12V(±25%), PoE(IEEE802.3af) | ||||||
| Power Consumption | Max 12W | Max 12W | ||||||
| Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
| Dimensions | ?129 x 114 mm(?5.08? x 4.49?)(? x H) | ?129 x 114 mm(?5.08? x 4.49?)(? x H) | ||||||
| Weight | 0.72kg(1.6lb) | 0.72kg(1.6lb) | ||||||
| Working Environment | -40 C to 70 C (-40 F to 158 F), Humidity: </= 95% RH (non-condensing) | -40 C to 70 C (-40 F to 158 F), Humidity: </= 95% RH (non-condensing) | ||||||
| Storage Environment | -40 C to 70 C (-40 F to 158 F), Humidity: </= 95% RH (non-condensing) | -40 C to 70 C (-40 F to 158 F), Humidity: </= 95% RH (non-condensing) | ||||||
| Surge Protection | 6 KV | 6 KV | ||||||
| Reset Button | Support | Support | ||||||
| RTC | Support | Support | ||||||
| Certification | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
| Live View | ||||||||
| Maximum Bitstream | 35 | 35 | ||||||
| Maximum Bandwidth | 50 Mbps | 50 Mbps | ||||||
| OSD Font | Vector | Vector | ||||||
| OSD Color | Support | Support | ||||||
| OSD Character Number | 40 | 40 | ||||||
| Other | ||||||||
| Corridor Mode | Support | Support | ||||||
