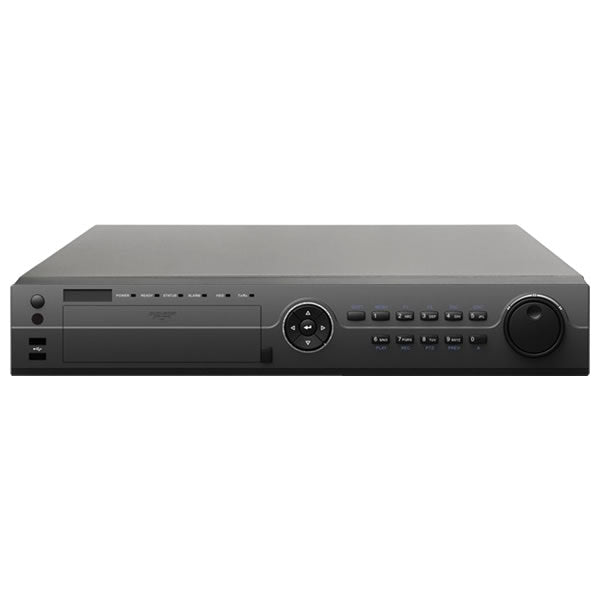

Galaxy 16CH 4K Ultra HD 1080P Standalone NVR w/ 16PoE
Galaxy 16CH 4K Ultra HD 1080P Standalone NVR w/ 16PoE
Model: SVDN8916H-P16
Regular price
$1,115.05
Sale price
$1,115.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
16CH, up to 4K(12MP), 160Mbps input, HDMI, VGA, Audio 1in/1out, Alarm 16in/4out, 16x PoE, 4x SATA up to 6TB/ea, 2x USB2.0, 1x USB3.0, eSATA, 4x POS via TCP/IP, 1.5U case, Multiple network monitoring
Couldn't load pickup availability
- 16 Channel Network Video Recorder
- Support Live View, Storage, Playback up to 12MP IP Camera
- Quad-core CPU
- 160MB Bandwidth
- 16 Built-in PoE
- 4K (3840x2160) HDMI Video Output
- 4 SATA up to 6TB each HDD
- H.264/H.264 Zip+/H.265 Ready
| Recorder Series | Platinum Series | |
| Recorder Channel | 16-Channel | |
| Recorder Case | 1.5U Case | |
| Recorder Technology | IP / NVR | |
| Featured Product | No | |
| Video/Audio input | ||
| IP video input | 16-ch Up to 12 MP resolution | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k ?) | |
| Network | ||
| Incoming bandwidth | 160 Mbps | |
| Outgoing bandwidth | 256 Mbps | |
| Remote connection | 128 | |
| Video/Audio output | ||
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI1 output resolution | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K(2560×1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA output resolution | 2K(2560×1440)/60Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1/VGA Simultaneous Output | |
| HDMI2 output resolution | 1920 × 1080/60Hz , 1280 × 1024/60Hz , 1280 × 720/60Hz , 1024 × 768/60Hz | |
| Audio output | 1-ch, RCA (Linear, 1 K?) | |
| Decoding | ||
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Live view / Playback resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Synchronous playback | 16-ch | |
| Capability | 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) | |
| Network management | ||
| Network protocols | TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | |
| Hard disk | ||
| SATA | 4 SATA interfaces for 4HDDs | |
| Capacity | Up to 8 TB capacity for each HDD | |
| eSATA | 1 eSATA interface | |
| External interface | ||
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | |
| Serial interface | 1 RS-485 (half-duplex), 1 RS-232 | |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | |
| Alarm in/out | 16/4 (16/8 optional) | |
| POE Interface | ||
| Interface | 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces | |
| Power | ?200W | |
| Supported standard | IEEE 802.3 af/at | |
| General | ||
| Power supply | 100 to 240 VAC | |
| Total Power | ? 360 W | |
| Consumption (without hard disk) | ? 20 W (without enabling PoE) | |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working humidity | 10 to 90 % | |
| Dimensions (W × D × H) | 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") | |
| Weight (without hard disk) | ? 5 kg (11 lb) | |
