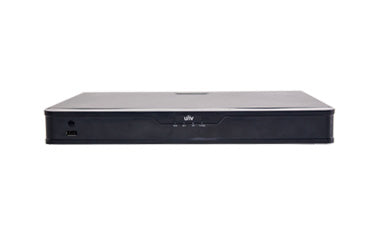

SR-16NI-I2-16P
SR-16NI-I2-16P
Model: SR-16NI-I2-16P
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Couldn't load pickup availability
- Support Ultra265/H.265/H.264 video formats
- 8/16-channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
|
Model |
|
SR-16NI-I2-16P |
|
Video/Audio Input |
||
|
IP Video Input |
8-ch |
16-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
160Mbps |
|
|
Outgoing Bandwidth |
64Mbps |
|
|
Remote Users |
128 |
|
|
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
|
|
Video/Audio Output |
||
|
HDMI/VGA Output |
HDMI: 4K (3840x2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 |
|
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
8-ch |
16-ch |
|
Corridor Mode Screen |
3/4/5/7/9 |
3/4/5/7/9/10/12/16 |
|
Decoding |
||
|
Decoding format |
Ultra265/H.265/H.264 |
|
|
Live view/Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30 |
2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30 |
|
Hard Disk |
||
|
SATA |
2 SATA interfaces |
|
|
Capacity |
Up to 10TB for each disk |
|
|
External Interface |
||
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
|
USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
|
|
Alarm In |
4-ch |
|
|
Alarm Out |
1-ch |
|
|
PoE |
||
|
Interface |
8 independent 100Mbps PoE network interfaces |
16 independent 100Mbps PoE network interfaces |
|
Max Power |
Max 30W for single port Max 130W in total |
Max 30W for single port Max 240W in total |
|
Supported Standard |
IEEE 802.3af/at |
|
|
General |
||
|
Power Supply |
100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
|
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
|
Dimensions (W×D×H) |
380mm ×315mm × 53mm (14.9" × 12.4" ×2.1") |
|
|
Weight (without HDD) |
≤2.6kg (5.29lb) |
|
