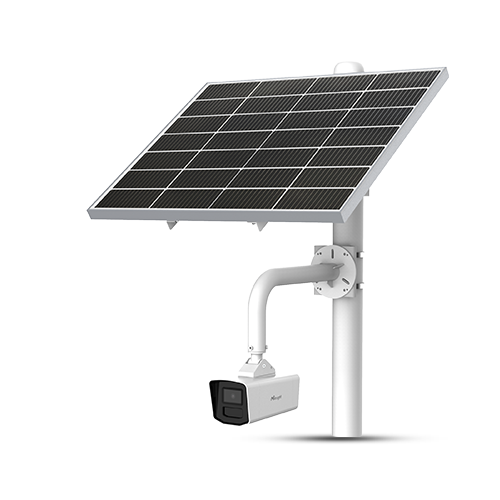

MileSight 4G Solar-powered ANPR Camera
MileSight 4G Solar-powered ANPR Camera
Model: SP111/41L/LTE-NA/16mm/740
Regular price
$3,712.50
Sale price
$3,712.50
Regular price
Available in stock
Open here
* Support 4G LTE: LTE-FDD(B2/4/5/12/13/14/66/71)
* Support Nano SIM; microSD, up to 1TB; MQTT&HTTP Protocol
* Solar-powered supported (Solar Power Module is optional)
* Support Sleep Mode
* Built-in GPS Module
* WiFi for web GUI configuration
* Operational Temperature: Charging: -20℃ ~45℃, Discharging: -20℃ ~60℃
Couldn't load pickup availability
- No-plate Vehicle Capture, License Plate Recognition, Vehicle type Recognition
- Support 4G LTE: LTE-FDD(B2/4/5/12/13/14/66/71)
- Support Nano SIM; microSD, up to 1TB; MQTT&HTTP Protocol
- Solar-powered supported (Solar Power Module is optional)
- Support Sleep Mode
- Built-in GPS Module
- WiFi for web GUI configuration
- Operational Temperature: Charging: -20℃ ~45℃, Discharging: -20℃ ~60℃
- Resolution: 4MP 2688x1520
- Frame Rate: 15fps
- Lens: Fixed 16mm
- WDR: 120dB
- IR Distance: 20m
- Protection level: IP67
- Interface: Audio I/O, Alarm I/O, 1*RJ45 10M/100M Ethernet Port, RS485
- 4G and solar-ready deployment
- AI LPR
- Built-in GPS
| Series | Solar-powered Series |
|---|---|
| Product Name | 4G Solar-powered ANPR Camera |
| Main Model Name | SP111 |
| Order Model Name | SP111/41L/LTE-NA/16mm/740 |
| Name | 4GSolar-poweredANPRCamera (4MP) |
| Model | SP111 /41L |
| Image | |
| ImageSensor | 1/2.8″ ProgressiveScanCMOS |
| Min.Illumination | Color:0.005Lux@F1.6 B/W:0LuxwithIRon |
| WDR | 120dBSuperWDR |
| ShutterTime | 1/100000s~1s |
| Day/NightMode | Day/Night/Auto/Customize/Schedule |
| IRWaveLength | 850nm/740nm |
| IRDistance | Upto20m(65.62ft) |
| S/N | >55dB |
| Lens | 6mm/16mm |
| Mount | M12 |
| FieldofView | 6mm:H52.8°/D60.4°/V29.7° 16mm:H19.4°/D22.2°/V11° |
| Video | |
| Max.ImageResolution | 4MP(2688*1520) |
| PrimaryStream | 60Hz/50Hz:15fps@(2688*1520,2304*1296,1920*1080,1280*720) |
| SecondaryStream | 60Hz/50Hz:15fps@(1280*720,704*576,640*480) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264 |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| PrivacyMasking | Upto4areas(Mask) |
| ROI | Upto8areas |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| WebAccess | WIFI/VPN/MilesightVMS |
| Interface | |
| AlarmI/O | Input*1,Output*1 |
| AudioI/O | Input*1,Output*1 |
| Ethernet | 1*RJ4510M/100MEthernetPort |
| RS485 | 1 |
| WirelessNetwork | |
| WLAN | 802.11n/802.11g |
| Cellular | 4GLTE NA:LTE-FDD(B2/4/5/12/13/14/66/71) AU:LTE-FDD(B1/2/3/4/5/7/8/28);LTE-TDD(B40) JP:LTE-FDD(B1/3/8/18/19/26);LTE-TDD(B41) EU:LTE-FDD(B1/3/7/8/20/28A);LTE-TDD(B38/40/41) |
| SIMCard | NanoSIM |
| IntelligentAnalytics | |
| ANPRDistance | 6mm:Upto10m 16mm:Upto20m |
| Coverage | Upto2lanes |
| RecognitionAccuracy | ≥ 95% |
| Max.VehicleSpeed | Vehicleswithaspeedof≤70km/h(43.5mile/h) |
| AttributesIdentification | VehicleType,No-plateVehicleCapture,White/BlackListManagement |
| CountryRegionSupported | Morethan20countriesandregions |
| White/BlackList | Upto20,000recordsinsidethecamera |
| System | |
| GPS | Built-inHigh-accuracyGPSModule |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| AdvancedFunction | BLC,HLC,2DDNR,3DDNR,Defog,AWB,IPAddressFiltering, AGC,Anti-flicker,CorridorMode,Deblur |
| EventTrigger | IntelligentAnalytics,ExternalInput,etc. |
| EventAction | HTTPPost,FTPUpload,SMTPUpload,SDCardRecord,ExternalOutput, Snapshot,PlayAudio,AlarmtoSIPPhone,etc. |
| SystemCompatibility | ONVIFProfileG&M&S&T,API |
| General | |
| WorkingTemperature | Charging:-20°Cto45°C(-4°Fto113°F) Discharging:-20°Cto60°C(-4°Fto140°F) |
| WorkingHumidity | 0~95%(Non-condensing) |
| PowerSupply | DC12V±10% |
| PowerConsumption | SleepMode:0.19W Basic:1.72W(ANPR+4GModuleOFF) Max:3.51W(Illuminator+ANPR+4GstreamingON) |
| SurgeProtection | 4KV |
| WeatherProof | UptoIP67-ratedforWeather-resistantPerformance |
| CameraDimensions | 120*120*260mm |
| CameraWeight | 2.2kg |
| Warranty | 3years |
| Certification | |
| EMC | CE-EMC(EN55032,EN55035) FCC(PART15B) RCM(AS/NZSCISPR32) |
| Safety | CE-LVD(ENIEC62368-1) RCM(AS/NZS62368.1) |
| FR | CE-RED(EN300328,EN301489-1,EN301489-17,EN62133) FCC(Part15.247) RCM(AS/NZS4268,AS/CAS042.1,AS/CAS042.4,AS/NZS2772.2) Telec(MICItem19ofArticle2Paragraph1) |
| Environment | CE-ROHS(Directive(EU)2015/863amending2011/65/EU) |
| Name | |
| S100SolarPowerSystem | S100SolarPowerSystem |
| S100B55 | S100B96 |
| SolarPanelModulesinKit | |
| Default:1units; Optional:2units | Default:1units; Optional:2units |
| Charge | |
| 100W | 100W |
| PVInputVoltage | |
| 18V | 18V |
| Material | |
| Monocrystallinesilicon | Monocrystallinesilicon |
| EnergyStorage | |
| NMC | NMC |
| BatteryCapacity | |
| 50AH | 90AH |
| TotalEnergy | |
| 555Wh | 962Wh |
| BatteryLife | |
| 9days(withoutdatatransmission), 6days(withdatatransmission) | 17days(withoutdatatransmission), 11days(withdatatransmission) |
| DeepCycles | |
| ＞1000 | ＞1000 |
| NominalVoltage | |
| 11.1V | 11.1V |
| Discharge | |
| 9~12.6VDC | 9~12.6VDC |
| MaximumOutputCurrent | |
| 10A | 10A |
| DischargeDepth | |
| 95%DOD | 95%DOD |
| Function | |
| Chargingcurrent>2Aand lowerthan-5℃turnson | Chargingcurrent>2Aand lowerthan-5℃turnson |
| ProtectionType | |
| Overcurrent/Overvoltage/ ShortCircuit/Undervoltage/Temperature | Overcurrent/Overvoltage/ ShortCircuit/Undervoltage/Temperature |
| ChargingTemperatureRange | |
| 0℃~60℃ | 0℃~60℃ |
| DischargingTemperatureRange | |
| -20℃~65℃ | -20℃~65℃ |
| StatusIndicator | |
| LED(chargingstatus,batterystatus,outputstatus) | LED(chargingstatus,batterystatus,outputstatus) |
| Interface | |
| RS485 | RS485 |
| OutputMethod | |
| M125-pinConnector | M125-pinConnector |
| OutputLineLength | |
| 1.5m | 1.5m |
| Interface | |
| DualDevicePowerSplitterCable BridgeData&PowerCable(RS485&DCOutput) MainPowerCable | DualDevicePowerSplitterCable BridgeData&PowerCable(RS485&DCOutput) MainPowerCable |
| General Parameters | |
| IP66 | IP66 |
| HumidityRange | |
| 4-100%(nocondensation) | 4-100%(nocondensation) |
| CoolingMethod | |
| NaturalHeatDissipation | NaturalHeatDissipation |
| HazardousMaterialClassification | |
| 9 | 9 |
| ShellMaterial | |
| GalvanizedSteel+Plastic | GalvanizedSteel+Plastic |
| FixedWay | |
| HangingRod/WallMounting | HangingRod/WallMounting |
| ProductDimensions | |
| 765*630*69mm 825*690*105mm(withPackage) | 765*630*112.5mm 825*690*140mm(withPackage) |
| Weight | |
| 13kg | 16kg |
| Warranty | |
| 2years | 2years |
| Certificate | |
| UN38.3/MSDS/CE/ROHS | UN38.3/MSDS/CE/ROHS |
