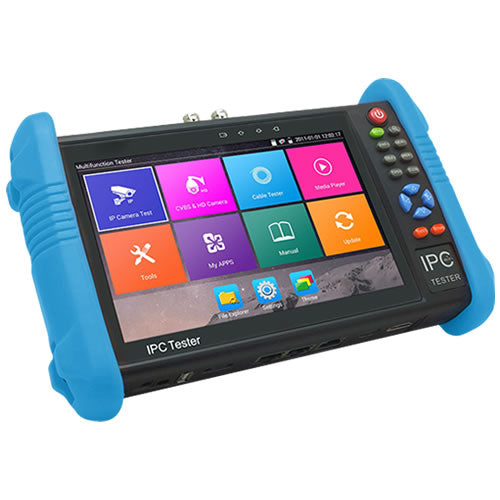

Item No.

IT-980P

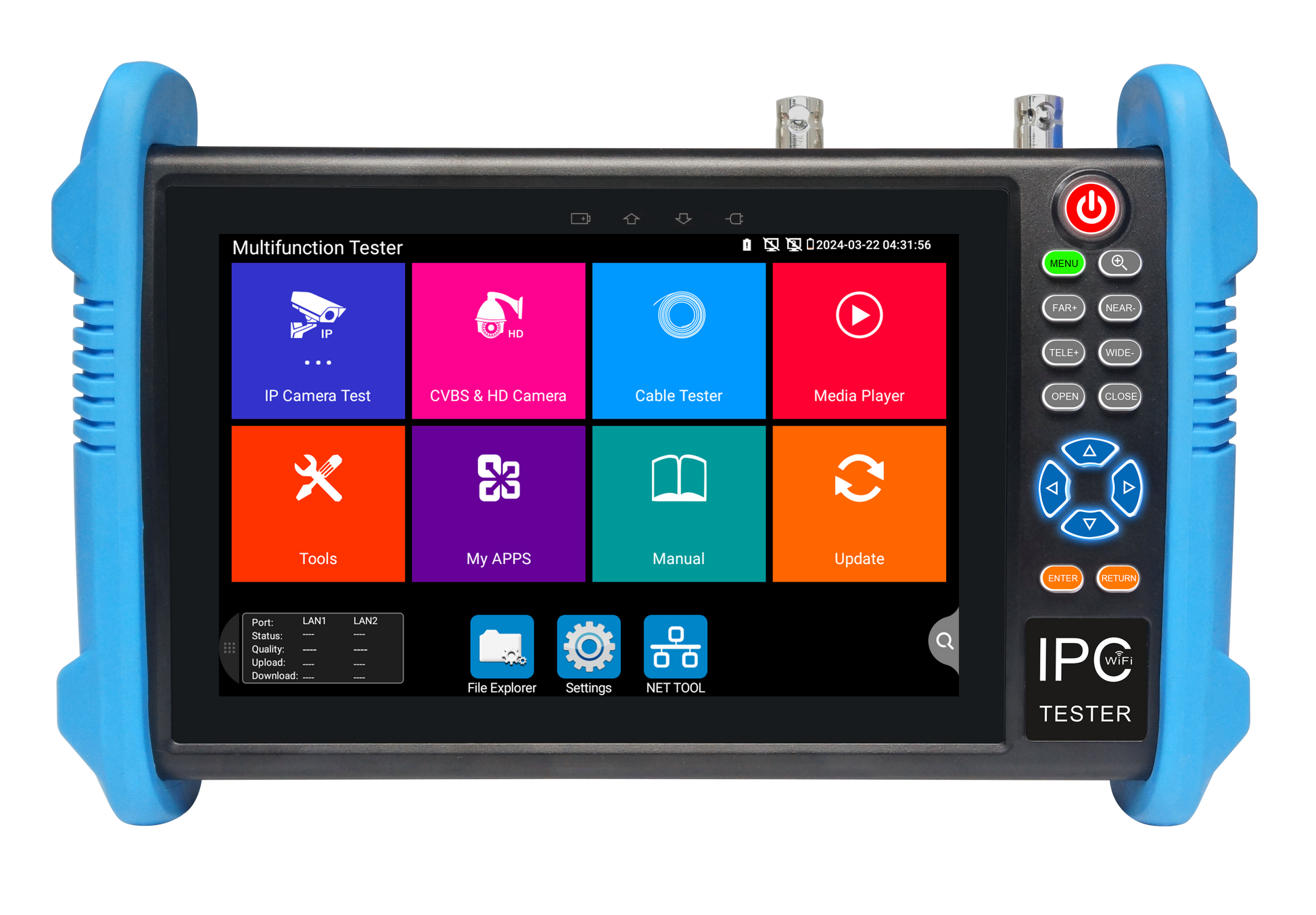

Display

New 7 inch IPS touch screen ,1280*800 resolution

Video Mode

CVBS

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

CVBS loop test

the tester send and receive color bar generator signal to check BNC cable

IP camera test

8K/H.265

IP Discovery/ Quick ONVIF/ IPC test / RTSP play / Client APK

Rapid Video

Auto view the video, create testing report

HIK test tool

Activate Hikvision camera, modify the user name, password and IP parameters

Dahua test tool

Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP & CVBS test at the same time, converter test from analog to digital with dual test window

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control & call OSD menu & TVI intercom & TVI coaxial audio test*

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu *

8MP AHDx test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu *

HDMI in & out

Support HDMI input 4K 30FPS, HDMI output 4K 60FPS *

VGA input

Support 1920*1080P

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar generator

Output one channel PAL/NTSC color bar signal for testing monitor or video cable

Power output

12V DC

Dual DC12V 3A power output

PoE power output

55V PoE++ power output, max power 90W

cable test

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test

Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M

Gigabit SFP port

Gigabit SFP optical fiber module port

Tester Play

Screen projection: Tester, mobile phone and PC display at the same time (For android mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI, speed150M, display wireless camera image

Audio test

1CH audio signal input to test whether sound normal, 1CH audio signal to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

PoE test

Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down menu

You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface

External power supply

DC 15V 1.6A

Battery

Built-in 11.1V Lithium polymer battery, 5200mAh

Rechargeable

After fast charging 3.5 hours, normal working time 13 hours

Operation setting

OSD menu, language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc

Auto off

1-30 (mins)

Working Temp.

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

240mm x 154mm x 46mm / 620g
