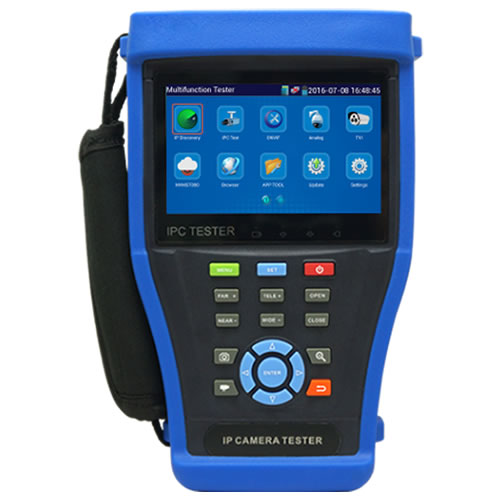

5 in 1 Multi-purpose Camera Tester
5 in 1 Multi-purpose Camera Tester
Model: SED-MON-IT-48M
Regular price
$810.55
Sale price
$810.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4.3" touch screen 800x480, Support IP/TVI/CVI/AHD/Analog camera test, HDMI 1080P, PoE, PING test, IP address scan, port flashing, Built-in Lithium Ion Polymer Battery
Couldn't load pickup availability
- 5-1 Multi-purpose Security Camera Tester
- Support 4MP IP camera ,3MP TVI, 2MP CVI, 2MP AHD and Analog test
- 4.3 inch touch screen, 800x480 resolution
- Compatible with H.264/MPEG4/MJPEG IP cameras
- HDMI signal output, support 1080P
- Built in WiFi , Support ONVIF, RS232,RS485
- PoE voltage measurement, PING test ,IP address scan, port flashing
- Lithium Ion Polymer Battery can last 16 hours for normal use after charging for 8 hour
| Parameter | |
| Display | 4.3 inch capacitive touch screen , resolution 800£¨RGB£©x 480 |
| Network port | 10/1 0 0 M auto adapt,RJ45 |
| WIFI | Built in WIFI, speeds150M, display wireless camera image |
| IP camera type | ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer |
| Rapid ONVIF | Search camera quickly, auto log in and display image from the camera |
| TVI/CVI/AHD test | |
| TVI video signal test | 1 channel TVI input(BNC interface), support resolution:720p 25,30,50,60fps/ 1080p 25,30fps,3M/5M TVI |
| CVI video signal test | 1 channel CVI input(BNC interface), support resolution:720p 25,30,50,60fps/ 1080p 25,30fps |
| AHD video signal test | 1 channel AHD input(BNC interface), support resolution:720p 25,30fps / 1080p 25,30fps |
| Analog video test | 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) |
| Zoom Image | Support Analog and IP camera image zooming /movement |
| Snapshot,Video record and playback | Capture still images and record live video. Media player will view photos and playback video |
| HDMI output | 1 channel HDMI output, supports up to 1080p |
| 12V/2Apower output | Output DC12V/2A power for camera |
| USB 5V power output | DC 5V/2A power output only , no data |
| PoE power output | |
| Audio test | 1 channel audio signal input and 1 channel audio signal output to connect headphones |
| PTZ control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green , blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Network test | IP address scan, link scan, and Ping test. Quickly search the for IP cameras IP address on your network |
| PoE /PSE voltage test | Measures PoE switch voltage and displays pin configuration |
| General | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery, 5000mAh |
| Rechargeable | A fter charging 7~8 hours, normal working time 16 hours |
| Operation setting | Capacitive touch screen, OSD menu, select your desired language |
| Auto Off | 5-30 (mins) |
| Working Temperature | -10 deg.C ~ +50 deg.C(14deg.F - 122deg.F) |
| Working Humidity | 30%-90% |
| Dimension | 215x127x53mm(8.5x5.0x2.1in) |
| Weight | 0.82Kg(1.80Ib) |
