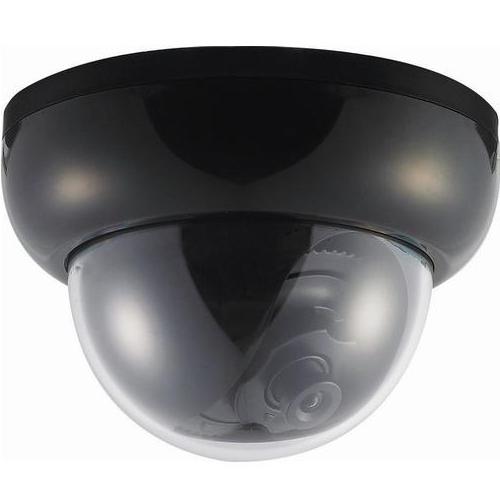

Indoor Dome
Indoor Dome
Model: SED-CAM-SVD562
Regular price
$101.50
Sale price
$101.50
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/3" Sony Super HAD II CCD used, Day and Night function, 0.3Lux at F1.2 (Color) / 0.03Lux (BW)
Couldn't load pickup availability
- 1/3° Sony Super HAD ll CCD
- Day and Night Function
- 530 TV Line Resolution
- 0.3Lux at F1.2 (Color) / 0.03Lux (BW)
- Controlled by OSD Menu
- Electronic Shutter Control
- Privacy Function
- Motion Detection
- Easy Installation & 3 Axis
| Model | SED-CAM-SVD562 |
| Resolution | 530 TV Lines |
| Sensor | 1/3" SONY Super HAD ll CCD |
| Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
| Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
| Scanning System | 2:1 Interlace |
| 3DDNR (3D Digital Noise Reduction) | 0~100 Adjustable |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0.3 Lux at F1.2 (Color) / 0.03Lux (BW) |
| White Balance | ATW / AWC / AWB SET / MANUAL / INDOOR / OUTDOOR |
| Electronic shutter Speed |
Auto / Manual |
| O.S.D | Built-in |
| Backlight Compensation | Low, Middle, High, HSBLC, Off Selectable |
| Gain Control | Low, Middle, High, Off Selectable |
| Day & Night | AUTO / EXT / BW / COLOR |
| SYNC | INTERNAL |
| Motion Detection | On / Off (4 Zone) |
| PRIVACY |
On / Off (8 Zone) |
| MIRROR | MIRROR / V-FLIP / ROTATE / OFF |
| Operating Temperature / Humidity | -10 °C~ +50 °C/ 30% ~ 80% RH |
| Storage Temperature / Humidity | -20 °C~ +60 °C/ 20% ~ 90% RH |
| Power | DC 12V |
| Lens (selective) | 3.6mm Fixed Lens |
