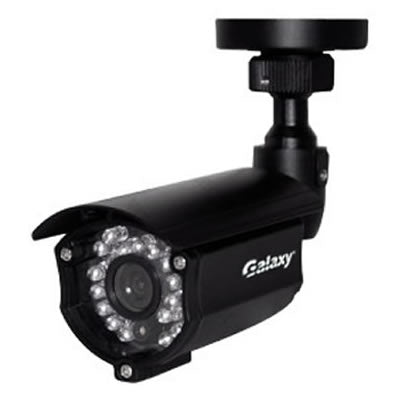

Galaxy 700TVL WDR IR Outdoor Bullet Camera
Galaxy 700TVL WDR IR Outdoor Bullet Camera
Model: SED-CAM-SVB67
Regular price
$107.30
Sale price
$107.30
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/3" SONY SUPER HAD CCD II, 700TVL, Upgraded Waterproof Housing (IP67), 0Lux at IR On, IR LED 25pcs, OSD Controlled, WDR, Smart IR, 3DDNR, Day & Night, Motion, Privacy, Easy Installation, Fixed Lens 3.6mm, DC12V
Couldn't load pickup availability
- Hero Chipset
- 1/3 INCH SONY SUPER HAD CCD II
- High Resolution / High Sensitivity (Sense up x1024)
- Upgraded Waterproof Housing (IP67 rating)
- 0Lux at IR On (IR LED 25pcs)
- OSD Controlled
- WDR (Wide Dynamic Range) / Smart IR
- 3DDNR / Day & Night
- Motion / Privacy / Easy Installation
- Fixed Lens 3.6mm
| Model | SED-CAM-SVB67 |
| Sensor | 1/3 INCH SONY SUPER HAD CCD II |
| Resolution | 700 TVL |
| Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
| Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
| Scanning System | 2:1 Interlace |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0 Lux at IR On |
| White Balance | ATW / PUSH / MANUAL Adjustable |
| Electronic Shutter Speed | AUTO / MANUAL (1/60 sec ~ 1/120,000 sec) (NTSC) AUTO / MANUAL (1/50 sec ~ 1/120,000 sec) (PAL) |
| WDR (Wide Dynamic Range) | ON / OFF |
| O.S.D | Bulit-In |
| Backlight Compensation | BLC / HLC / HBLC / OFF |
| AGC (Auto Gain Control) | LOW, MIDDLE, HIGH, OFF Selectable |
| 3DDNR (3D Digital Noise Reduction) | OFF, LOW, MIDDLE, HIGH, AUTO |
| Day & Night | AUTO (Day Night time Change), EXT, COLOR, B/W |
| Smart IR | ON / OFF |
| Privacy | OFF / ON (8 Zone) |
| Smart Motion Detection | OFF / ON (4 Zone) |
| Image Conversion | ON / OFF |
| LSC (Lens Shading Compensation) | ON / OFF |
| Sharpness | ADJUSTABLE |
| LANGUAGE | ENGLISH, SPANISH, PORTUGUESE, RUSSIAN, GERMAN, ITALIAN, NEDERLAND, KOREAN, CHINESE |
| Lens | Fixed Lens 3.6mm |
| Power | DC 12V |
| Operating Temperature / Humidity | -10°C ~ +40°C / 30% ~ 80% RH |
| Storage Temperature / Humidity | -20°C ~ +60°C / 20% ~ 90% RH |
