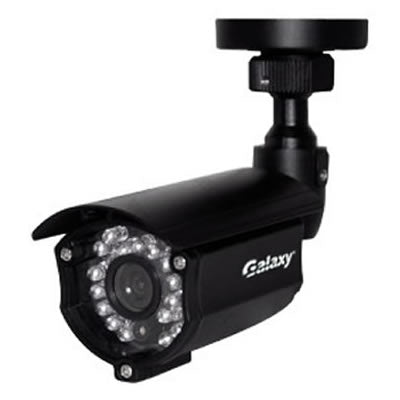

Galaxy 600TVL IR Outdoor Bullet Camera
Galaxy 600TVL IR Outdoor Bullet Camera
Model: SED-CAM-SVB66
Regular price
$133.40
Sale price
$133.40
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/3" Sony Super HAD II CCD, Day and Night function, 600 TVL, 0 Lux, Electronic Shutter Control
Couldn't load pickup availability
- 1/3" Sony Super HAD ll CCD
- Day and Night Function
- 600 TV Line Resolution
- 0 Lux at IR On
- Electronic Shutter Control (ESC)
| Model | SED-CAM-SVB66 |
| Resolution | 600 TV Lines |
| Sensor | 1/3 inch SONY Super HAD ll CCD |
| Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
| Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0 Lux at IR On |
| White Balance | ATW |
| Electronic shutter Speed |
1/60 sec ~ 1/120,000 sec (NTSC) 1/50 sec ~ 1/120,000 sec (PAL) |
| O.S.D | N/A |
| Backlight Compensation | N/A |
| Gain Control | AUTO |
| Day & Night | AUTO |
| SYNC | INTERNAL |
| Motion Detection | N/A |
| PRIVACY | N/A |
| MIRROR | N/A |
| Operating Temperature / Humidity | -10 °C~ +50 °C/ 30% ~ 80% RH |
| Storage Temperature / Humidity | -20 °C~ +60 °C/ 20% ~ 90% RH |
| POWER | DC12V Only |
| LED | 24 pcs |
| LENS | Fixed Lens 3.6mm |
