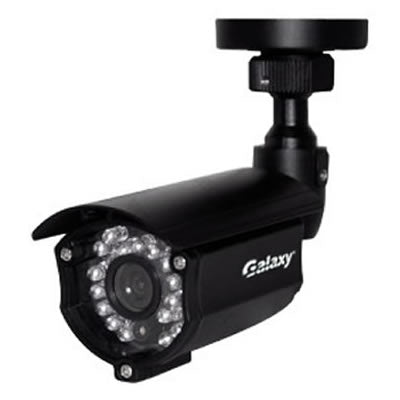

Galaxy 600TVL WDR IR Outdoor Bullet Camera
Galaxy 600TVL WDR IR Outdoor Bullet Camera
Model: SED-CAM-SVB325
Available in stock
Send a copy to email:
Open here
Outdoor WDR IR Bullet Camera, 1/3" Sony Super HAD CCD II, 600 TV Line Resolution, 0Lux at IR ON, 25pcs IR LEDs, Day & Night Function, OSD, 3.6mm Lens, DC12V
Couldn't load pickup availability
- 1/3" SONY SUPER HAD CCD II
- WDR (Long and Short exposure) Function
- High Resolution (600 TVL) / High Sensitivity (sense up x 256)
- Upgraded Waterproof Housing (IP67 Rating)
- 0 Lux at IR ON (IR LED 25pcs)
- OSD Controlled / Motion (240 Zone) / Privacy
- True Day & Night / 3DDNR / HLM
- Easy Installation / 3 Axis Concealed Bracket
- Lens: 3.6mm Fixed Lens
Model
SVB325
Resolution
600 TV Lines
Sensor
1/3 inch SONY Super HAD CCD ll
Total Pixels
811(H) x 508(V) 410K pixels (NTSC)
795(H) x 595(V) 470K pixels (PAL)
Effective Pixels
768(H) x 494(V) 380K pixels (NTSC)
752(H) x 582(V) 440K pixels (PAL)
Scanning System
2:1 Interlace
Frequency
Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC)
Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL)
S/N (Y signal)
More than 52 dB (AGC off)
Video Output
CVBS : 1.0Vp-p / 75ohm
Min. Illumination
0 Lux at IR On
White Balance
ATW / AWC / PUSH/ MANUAL Adjustable
Electronic shutter
Speed
Auto / Manual
(1/60 sec ~ 1/100,000 sec NTSC)
(1/50 sec ~ 1/100,000 sec PAL)
WDR (Long and Short exposure)
ON / OFF Selectable
O.S.D
Built-in
Backlight Compensation
BLC: LOW, MIDDLE, HIGH, OFF Selectable
HLM: ADJUSTABLE
AGC (Auto Gain Control)
LOW, MIDDLE, HIGH, OFF Selectable
3DDNR (3D Digital
Noise Reduction)
Low, Middle, High, Off
Day & Night
AUTO (DayNight time Change) , CDS , COLOR , B/W
Motion Detection
ON (240 zone) / OFF
PRIVACY
ON (6 Zone) / OFF
Image Conversion
FREEZE / V-FLIP / H-FLIP / ROTATE / NEGA : All ON/OFF Adjustable
DIS (Digital Image Stabilizer)
ON / OFF
LSC (Lens Shading Compensation)
ON / OFF
Digital Zoom
ON (x1~x10) / OFF
Sharpness
ADJUSTABLE
Operating Temperature
/ Humidity
-10 C~ +50 C/ 30% ~ 80% RH
Storage Temperature
/ Humidity
-20 C~ +60 C/ 20% ~ 90% RH
| Power | DC12V Only | |
| LED | 25 pcs | |
| Lens | Fixed Lens 3.6mm | |
| Weight | 0.483 kg | |
