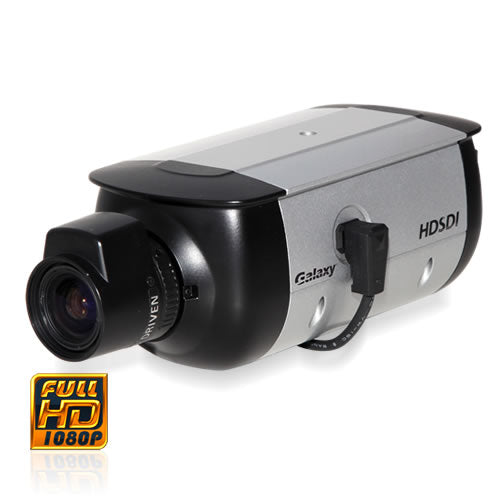

Galaxy 2.2MP 1080P Full HD, HD-SDI WDR Box Camera / Dual Power
Galaxy 2.2MP 1080P Full HD, HD-SDI WDR Box Camera / Dual Power
Model: SED-CAM-GXHD724
Regular price
$108.75
Sale price
$108.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
HD-SDI 1080P, 1/3" SONY CMOS, 1000TVL, WDR, 1 Lux at F1.2 / 0.1 Lux (B/W), DC12V/AC24V DualPower, (Lens not included)
Couldn't load pickup availability
- 1/3 Inch SONY CMOS
- HD-SDI (1080P, 720P) / High Resolution (1000 TV Line OVER)
- 1 Lux at F1.2 / 0.1 Lux (B/W)
- HD-SDI (High Definition Serial Digital Interface)
- OSD Controlled / WDR (Wide Dynamic Range)
- DNR (Digital Noise Reduction)
- Day & Night Function / Motion Detection
- Privacy / Easy Installation
| Model | GXHD724 |
| Resolution | HD-SDI(1080P, 720P) / 1000 TV LINE OVER |
| Sensor | 1/3 inch SONY CMOS |
| Total Pixels | 2010(H) X 1108(V) = 2,227,080 |
| Effective Pixels | 1944(H) X 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | SMPTE292M (HD-SDI) / CVBS: 1.0Vp-p (75ohm) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PUSHING / MANUAL |
| Electronic shutter speed | Auto / Manual (1/30sec ~ 1/30,000sec) |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / X2 / X3 / X4 |
| DNR | OFF / LOW / MIDDLE / HI |
| WDR/BLC | OFF / WDR / BLC |
| HLM | OFF / SET |
| ACE | OFF / ON |
| Day & Night | Auto (Day Night TIME Change) , COLOR , B/W |
| Privacy | OFF / ON (28 Zone) |
| Motion Detection | OFF / ON |
| D.ZOOM | 0 ~ X112 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| Language | ENGLISH |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| Mirror | ON / Off |
| COMM. | RS-485(PELCO-D) |
| Operating Temperature/Humidity | -10°C~+50°C / 30%~80% RH |
| Storage Temperature/Humidity | -20°C~+60°C / 20%~90% RH |
| Power | DC12V +-10% Only / DC12V? AC24V +-10% DualPower (option) |
| HS-SDI | 250Feet |
| Transmission range | Max transmission range is depends on the cable manufacturer and the installation environment. |
