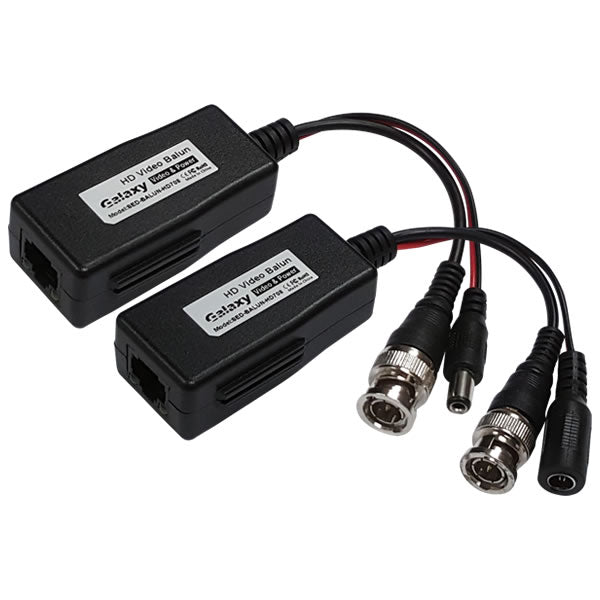

Single Channel HD Video & Power Transmitter & Receiver
Single Channel HD Video & Power Transmitter & Receiver
Model: SED-BALUN-HD708
Regular price
$36.25
Sale price
$36.25
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Real-time transmission over UTP cat5e/6, Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras, Power signal up to 200m (656ft), Male BNC with extended 5.9inch (150mm) mini-coax pigtail, RJ45 Jack for UTP cable
Couldn't load pickup availability
- Real-time transmission over UTP cat5e/6
- Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
- Color video max up to 190m (623ft) for HD-TVI 720P camera
Color video max up to 190m (623ft) for HD-TVI 1080P camera
Color video max up to 200m (656ft) for HD-TVI 3MPX camera - Color video max up to 440m (1443ft) for HD-CVI 720P camera
If you adjust saturation of DVR, max up to 470m (1541ft)
Color video max up to 230m (754ft ) for HD-CVI 1080P camera
Color video max up to 230m (754ft ) for HD-CVI 4MPX camera - Color video max up to 320m (1049ft) for HD-AHD 720P camera
Color video max up to 320m (1049ft) for HD-AHD 960P camera
Color video max up to 250m (820ft) for HD-AHD 1080P camera
Color video max up to 180m (590ft) for HD-AHD 3MPX camera
Color video max up to 200m (656ft ) for HD-AHD 4MPX camera
Color video max up to 200m (656ft ) for HD-AHD 5MPX camera - Color video max up to 400m (1312ft) for CVBS camera
- Power signal up to 200m (656ft)
- Male BNC with extended 5.9inch (150mm) mini-coax pigtail
- RJ45 Jack for UTP cable
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
| Model | SED-BALUN-HD708 | ||||||
| Product Name | Single Channel HD Video & Power Transmitter & Receiver | ||||||
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||||||
| Video | Video Format | HD-TVI/CVI/AHD/CVBS | |||||
| Operating Frequency | DC to 42MHz | ||||||
| Max Distance | HD-CVI 720P 440m(1443ft) | HD-CVI 1080P 230m(754ft) | HD-CVI 4MPX 230m(754ft) | ||||
| HD-TVI 720P 190m(623ft) | HD-TVI 1080P 190m(623ft) | HD-TVI 3MPX 200m( 656ft) | |||||
| HD-AHD 720P 320m(1049ft) | HD-AHD 960P 320m(1049ft) | HD-AHD 1080P 250m(820ft) | HD-AHD 3MPX 180m(590ft) | HD-AHD 4MPX 200m(656ft ) | HD-AHD 5MPX 200m(656ft ) | ||
| Common-mode/Differential-mode rejection | 15KHz to 42MHz 60 dB typ | ||||||
| Impedance | Coax: Male BNC 75ohm unbalanced | ||||||
| UTP:RJ45 100ohm balanced | |||||||
| Attenuation | 1.5 dB typ Max | ||||||
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |||||
| Category Type | UTP cat 5e/6 | ||||||
| Impedance | 100 +/- 20 ohms | ||||||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||||||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||||||
| Power | Power Input | 12V/24V,DC/AC | |||||
| Power transmission | 12V/24V,DC/AC, via UTP cat5e/6. please refer to power distance chart above | ||||||
| Connector | Video input/output | Male BNC connector | |||||
| Video input/output | RJ45 Jack | ||||||
| Protection | Surge Protection | renewable solid state surge protection | |||||
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Video Output | 2KV(different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Mechanical | Housing | ABS engineering plastic | |||||
| Body Color | Black | ||||||
| Dimensions(L*W*H) | 60.4*29*20.4mm (BNC connector & cable excluded) | ||||||
| Net Weight | 60g | ||||||
| Environmental | Operating Temperature | -20deg. ~ 70deg. C | |||||
| Relative Humidity | 0~95% (non-condensing) | ||||||
| Storage Temperature | -40deg. ~ 150deg. C | ||||||
