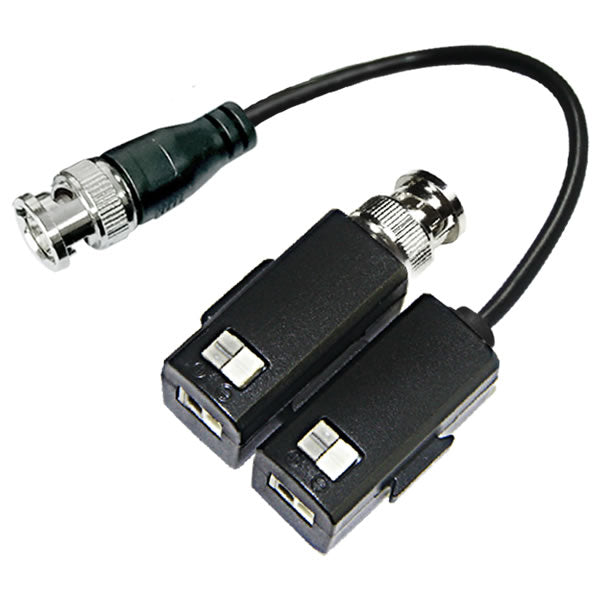

SED-BALUN-HD608 Galaxy Single Channel HD Passive Video Balun
SED-BALUN-HD608 Galaxy Single Channel HD Passive Video Balun
Model: SED-BALUN-HD608
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Real-time transmission over UTP cat5e/6, No power required, Support HD-TVI/CVI/AHD/CVBS Cameras, Support 720P/960P/1080P/3MP/4MP/5MP/4K Cameras, Male BNC connector, surge protection, Wave Filter, Anti-Static, Lightning protection, 60 dB crosstalk & noise immunity
Couldn't load pickup availability
The SED-BALUN-HD608 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The SED-BALUN-HD608 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.
Male BNC of the SED-BALUN-HD608 allows connection directly to the camera and DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, the SED-BALUN-HD608 eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the SED-BALUN-HD608 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The SED-BALUN-HD608 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
- Real-time transmission over UTP cat5e/6
- No power required
- Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
- Please refer to "Transmission Distance Chart" Part to find out
distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
- Male BNC connector
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
| Camera Type | HD-TVI | HD-CVI | HD-AHD |
720P camera |
250m(820ft) |
440m(1443ft) |
320m(1049ft) |
960P camera |
Not tested |
Not tested |
320m(1049ft) |
1080P camera |
250m(820ft) |
250m(820ft) |
250m(820ft) |
3MP camera |
250m(820ft) |
Not tested |
250m(820ft) |
4MP camera |
180m(590ft) |
200m(656ft) |
200m(656ft) |
5MP camera |
180m(590ft) |
Not tested |
180m(590ft) |
4K camera |
130m(426ft) |
200m(656ft) |
150m(492ft) |
CVBS camera |
400m(1312ft) |
||
| Model | SED-BALUN-HD608 | ||
| Product Name | Single Channel HD Passive Video Balun | ||
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||
| Video | Video Format | HD-TVI/CVI/AHD/CVBS | |
| Operating Frequency | DC to 71MHz | ||
| Common-mode/Differential-mode rejection | 15KHz to 71MHz 60 dB typ. | ||
| Impedance | Coax: Male BNC 75? unbalanced | ||
| UTP, push-pin terminal block 100? balanced | |||
| Attenuation | 1.5 dB typ. Max | ||
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |
| Category Type | UTP cat 5e/6 | ||
| Impedance | 100 ± 20 ohms | ||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||
| Power | No external power required | ||
| Connector | Video input/output | Male BNC connector | |
| Video input/output | Tool-less push-pin terminal block | ||
| Protection | Surge Protection | renewable solid state surge protection | |
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||
| Video Output | 2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||
| Mechanical | Housing | ABS engineering plastic | |
| Body Color | Black | ||
| Dimensions(L*W*H) | 38.4*18.6*19.5mm (BNC connector & cable excluded) | ||
| Net Weight | 22g | ||
| Environmental | Operating Temperature | -20º ~ 70º C | |
| Relative Humidity | 0~95% (non-condensing) | ||
| Storage Temperature | -40º ~ 150º C | ||
