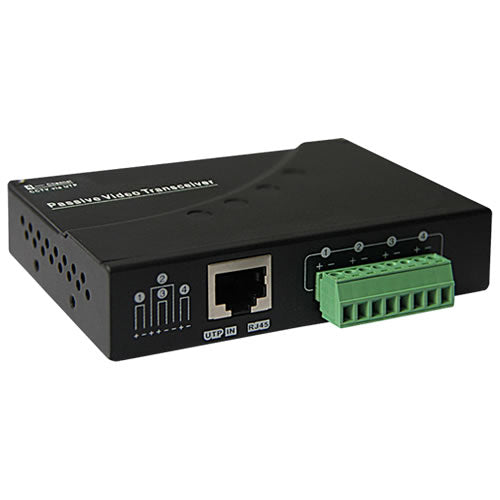

4-Channel HD Passive Video Balun
4-Channel HD Passive Video Balun
Model: SED-BALUN-HD504
Regular price
$27.55
Sale price
$27.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Real-time transmission over UTP cat5e/6, No power required, Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras, Wave Filter, Anti-Static, Lightning protection
Couldn't load pickup availability
- Real-time transmission over UTP cat5e/6
- No power required
- Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
- Color video max up to 190m (623ft) for HD-TVI 720P camera
Color video max up to 190m (623ft) for HD-TVI 1080P camera
Color video max up to 200m (656ft) for HD-TVI 3MPX camera - Color video max up to 440m (1443ft) for HD-CVI 720P camera
If you adjust saturation of DVR, max up to 470m (1541ft)
Color video max up to 230m (754ft ) for HD-CVI 1080P camera
Color video max up to 230m (754ft ) for HD-CVI 4MPX camera - Color video max up to 320m (1049ft) for HD-AHD 720P camera
Color video max up to 320m (1049ft) for HD-AHD 960P camera
Color video max up to 250m (820ft) for HD-AHD 1080P camera
Color video max up to 180m (590ft) for HD-AHD 3MPX camera
Color video max up to 200m (656ft ) for HD-AHD 4MPX camera
Color video max up to 200m (656ft ) for HD-AHD 5MPX camera - Color video max up to 400m (1312ft) for CVBS camera
- Female BNC connector
- RJ45 and detachable terminal blocks for UTP cat5e/6
- Built-in solid state TVS (Transient Voltage Suppressors) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- Compact size and easy installation
- Rack, wall mountable and desk installation with 4 rubber feet
- Black galvanized housing
| Model | SED-BALUN-HD504 | ||||||
| Product Name | 4 Channel HD Passive Video Balun | ||||||
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||||||
| Video | Video Format | HD-TVI/CVI/AHD/CVBS | |||||
| Operating Frequency | DC to 42MHz | ||||||
| Max Distance | HD-CVI 720P 440m(1443ft) | HD-CVI 1080P 230m(754ft) | HD-CVI 4MPX 230m(754ft) | ||||
| HD-TVI 720P 190m(623ft) | HD-TVI 1080P 190m(623ft) | HD-TVI 3MPX 200m( 656ft) | |||||
| HD-AHD 720P 320m(1049ft) | HD-AHD 960P 320m(1049ft) | HD-AHD 1080P 250m(820ft) | HD-AHD 3MPX 180m(590ft) | HD-AHD 4MPX 200m(656ft ) | HD-AHD 5MPX 200m(656ft ) | ||
| Common-mode/Differential-mode rejection | 15KHz to 42MHz 60 dB typ | ||||||
| Impedance | Coax:female BNC 75ohm unbalanced | ||||||
| UTP:screw terminal block or RJ45 100ohm balanced | |||||||
| Attenuation | 1.5 dB typ Max | ||||||
| Wire Type | Network Wiring | One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |||||
| Category Type | UTP cat 5e/6 | ||||||
| Impedance | 100 +/- 20 ohms | ||||||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||||||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||||||
| Power | No external power required | ||||||
| Connector | Video input/output | Female BNC connector | |||||
| Video output/input | pluggable screw terminal block and RJ45 for UTP ( select one connection) | ||||||
| Protection | Surge Protection | renewable solid state surge protection | |||||
| Antistatic | YES | ||||||
| Video Input | 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Video Output | 2KV(different mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999) | ||||||
| Mechanical | Dimensions(L*W*H) | BNC connector & mounting bracket excluded | |||||
| 180*85*32mm | |||||||
| Housing | Galvanized | ||||||
| Body Color | Black | ||||||
| Net Weight | 480g | ||||||
| Environmental | Operating Temperature | -20deg. ~ 70deg. C | |||||
| Relative Humidity | 0~95% (non-condensing) | ||||||
| Storage Temperature | -40deg. ~ 150deg. C | ||||||
