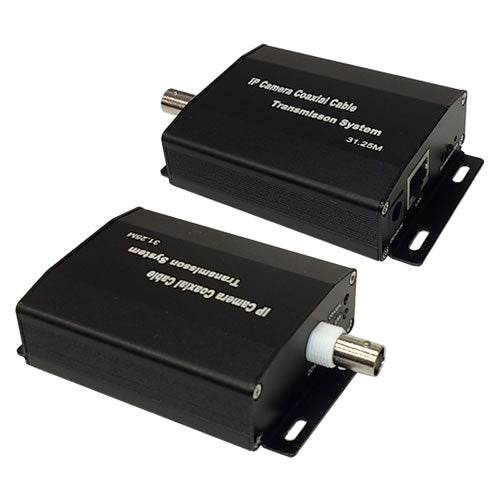

Ethernet Over Coaxial Converter
Ethernet Over Coaxial Converter
Model: SED-ADP-COX101
Regular price
$205.90
Sale price
$205.90
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Max 100Mbps Transfer Rate, MAX 2000M Transmission Distance,Type of Cable: Coaxial, Twisted pair, Telephone Line, DC12V
Couldn't load pickup availability
- Support multi-node network: a cable can be connected up to more than 20 IP cameras or termianl.
- Transmission distance: Normal SVY75-5 cable can transmit as far 2KM, while maintaining TCP/IP transmission rate of not less than 30 Mbps
-
High-speed communications: Measured TCP/IP throughput data below.
1) SVY75-5 cable length is less than 400M - 92Mbps
2) SVY75-5 cable length is less than 1000M - 74Mbps
3) SVY75-5 cable length is less than 3000M - 30Mbps - Support plug and play, easy to operate. Need to change the network cameras network terminal Any configuration of the device
- Construction is simple and cost savings: You can take advantage of the existing coaxial cable, twisted pair Lines, telephone lines, and other two-wires cable without the need for re-laying Ethernet pass Letter Media, greatly simplifying network deploymen, teduces network installation costs
|
Model |
COX101 |
|
Transfer rate |
Max 100Mbps |
|
Transmission distance |
Max 2000M |
|
Type of cable |
Coaxial cable, twisted pair, telephone line |
|
Interface Terminals |
RJ45 x 1, BNC x 1 |
|
Supply Voltage |
DC12V/0.5A |
|
Power consumption |
|
|
Relative Hummidity |
5% ~ 95% non-condesing |
|
Operating Temperature |
-20°C ~ 40°C |
|
Dimensions |
110 x 65 x 25mm |
