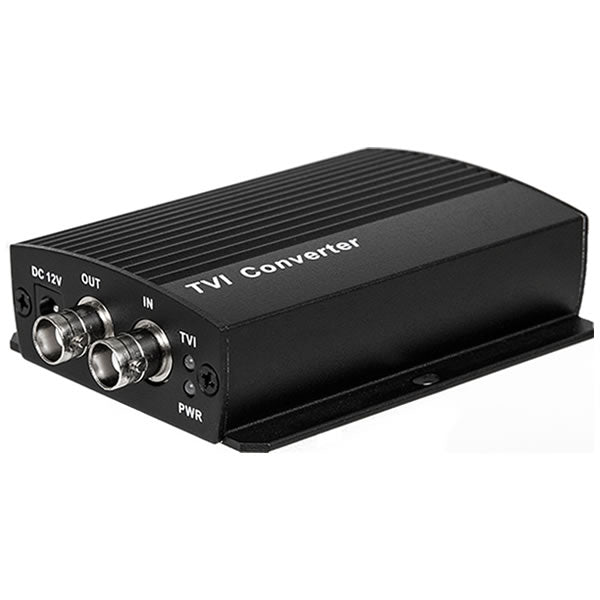

HD-TVI to HDMI Converter
HD-TVI to HDMI Converter
Model: SED-ADP-AH5100T
Regular price
$172.55
Sale price
$172.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1x HD-TVI input (BNC),1x HD-TVI Spot out (BNC), 1x HDMI Output
Couldn't load pickup availability
- HD-TVI Converter
- 1 Spot Out
| Properties | |
| Physical Interface | BNC, HDMI |
| Input Level | >500 mVp-p |
| Output Format | HDMI 1.4b, A standard interface |
| Input Auto Cable Equalization | 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M |
| Input Format | 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI |
| Input Impedance | 75 ? |
| Output Resolution | 720 p 50/60, 1080 p 50/60 |
| Output Format Distance | HDMI 1.4b, D-type base, 10 M distance |
| LED | Power LED, video source LED |
| Power Supply | 12 VDC, 1A |
| Power Consumption | ? 8 W |
| Working Humidity | 10 % to 90 % |
| Working Temperature | -86º F to + 167º F |
| Dimensions (W×D×H) | 2.0 × 1.2 × 1.0" |
| Mounting Type | Independent |
