SCT01
SCT01

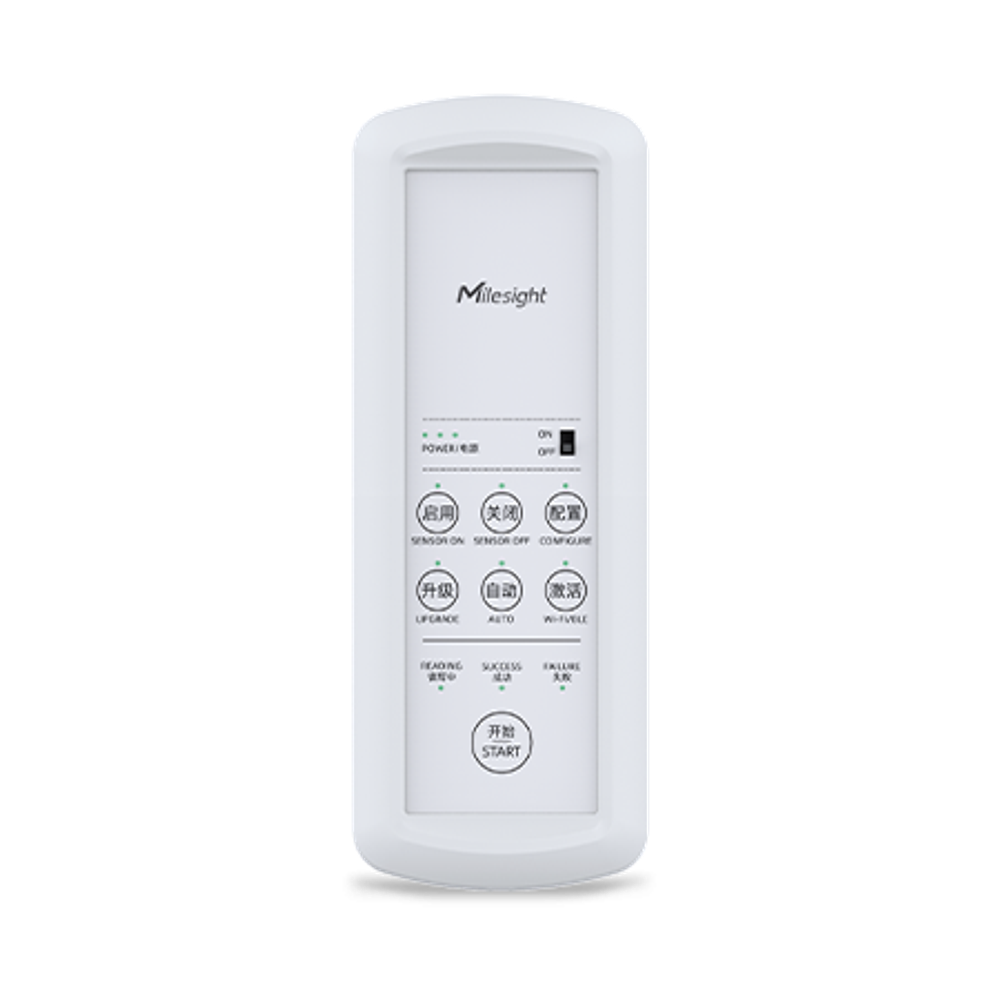

Model: SCT01
Regular price
$154.00
Sale price
$154.00
Regular price
Available in stock
Open here
Bluetooth 4.0 Supported
Power Supply: 1 * USB Type-C
1 * 2000 mAh Chargeable Battery
Battery Life: Around 6 Hour (Standby Mode: Around 1 Month)
Equips with a Buzzer and Rich Indicators
Built-in Bluetooth for Easy Tool Configuration and Template Import, Logs
Export, etc.
Supports to Store up to 50 Configuration Files
Supports to Store 1 Firmware File to Upgrade Devices in Bulk
Supports Real-time Data Backup
Easy to Read and Write to Devices with a Large NFC Area
IP30 Rated
Couldn't load pickup availability
- Intuitive button and LED interface
- Large NFC area for reliable device pairing
- Fast bulk sensor configuration
- Bluetooth export for configuration files and logs
- 16 MB memory for up to 50 configuration files
- Built-in rechargeable battery
| Model | SCT01 |
|---|---|
| Interfaces | |
| Bluetooth | Bluetooth 4.0 BLE; about 1.5 m configuration distance |
| NFC | ISO/IEC 14443A; 1-3 cm reading distance |
| Buttons | 7 configuration/power/upgrade buttons |
| LED Indicators | 3 power, 3 configuration-status, 6 button-status indicators |
| Buzzer | Supported |
| USB | 1 × USB 2.0 Type-C |
| Physical Characteristics | |
| Memory | 16 MB; up to 50 configuration files and 1 firmware file |
| Power Supply | Built-in 2000 mAh rechargeable battery or 5 V via USB Type-C |
| Battery Life | Around 6 hours; standby around 1 month |
| Operating Temperature | -20°C to 60°C |
| Ingress Protection | IP30 |
| Dimensions | 160 × 60 × 26.5 mm |
| Weight | 141 g |
