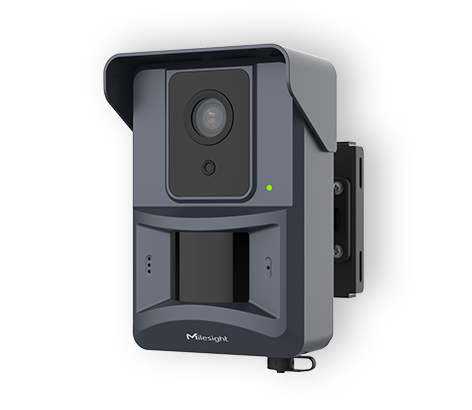

MileSight 4G Solar-powered Perimeter Sensing Camera
MileSight 4G Solar-powered Perimeter Sensing Camera
Model: SC411/42/LTE-NA/4mm
Regular price
$2,306.25
Sale price
$2,306.25
Regular price
Available in stock
Open here
* Support 4G LTE-FDD (B2/4/5/12/13/14/66/71)
* Support Nano SIM；SD card, up to 1tB; MQTT&HTTP & SMTP Protocol
* Solar-powered and DC supported (Solar Panel S45, S100B96 and S100B55 is optional)
* 7.2V, 6400mAh, 46.08Wh battery and USB Type-C Power Supply(DC 5V/2A Power Adapter is optional)
* Built-in GPS Module
* PIR or PIR+AOV Trigger and support AI Confirmation
* Low-power Consumption
* WiFi for web GUI configuration
* Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Couldn't load pickup availability
- Motion Detection, Noise Detection, Scheduled Tasks,Exception events (Tamper Detection, SD Card Exception, Battery Status Alert, Data Usage Alert, PIR Overtrigger Alert)
- Support 4G LTE-FDD (B2/4/5/12/13/14/66/71)
- Support Nano SIM；SD card, up to 1tB; MQTT&HTTP & SMTP Protocol
- Solar-powered and DC supported (Solar Panel S45, S100B96 and S100B55 is optional)
- 7.2V, 6400mAh, 46.08Wh battery and USB Type-C Power Supply(DC 5V/2A Power Adapter is optional)
- Built-in GPS Module
- PIR or PIR+AOV Trigger and support AI Confirmation
- Low-power Consumption
- WiFi for web GUI configuration
- Charging: -20 °C to 45 °C (-4 °F to 113 °F)
- Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Resolution: 4MP 2688*1520
- Frame Rate: 5fps
- Lens: Fixed 4mm
- IR Distance: 30m
- Protection level: IP67
- Interface: Solar Charging Interface(M12-5), USB Type-C, RS485, Built-in Mic, Audio Output, Alarm utput
- PIR + AOV + AI tri-sensing
- 4G/Wi-Fi off-grid deployment
- Active tamper detection
| Series | Solar-powered Series |
|---|---|
| Product Name | 4G Solar-powered Perimeter Sensing Camera |
| Main Model Name | SC411 |
| Order Model Name | SC411/42/LTE-NA/4mm |
| SC411 (4MP) | |
| ImageTriggerMode | 1- PIR(AllDay):24/7Trigger-onlycapture. 2- AOV(Day)+PIR(Night):Always-onbyday;Trigger-onlybynight. |
| Event | |
| EventType | SupportsMotionDetection(withAI-basedhumanfiltering), NoiseDetection,ScheduledTasks,One-ClickDisarm, andExceptionevents(TamperDetection,SDCardException,Battery StatusAlert,DataUsageAlert,PIROvertriggerAlert). |
| TriggerActions | Snapshotgroup(1–5images)/ Videoclip(2–5seconds)/ Combinedsnapshot&videoclip(2–5seconds) |
| DataPush | HTTP(s)POST,MQTT(s)POST,SMTPupload. |
| AlarmActions | Captureimages,sendvideoclips,orplayaudio (supportscustomuploadedaudiofiles). |
| TriggerDistance1 | Upto30m(Optimal) |
| SupplementLight | |
| LightType | IRStrobeLight(4lightbeads) |
| IRWavelength | 850nm |
| NoiseTrigger Source | |
| SoundSensor | Range:31dBA~120dBA Accuracy:±3dB Resolution:1dB |
| Lens | Fixedfocallens,4mm |
| Aperture | F1.0 |
| FieldofView | D:111.8°/H:93.1°/V:49.8° |
| DORI | D:78.4m/O:30.8m/R:15.4m/I:7.7m |
| Image | |
| ImageSensor | 1/1.8″ProgressiveScanCMOS |
| Day/NightMode | Day/Night/Auto/Customize |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| Video | |
| Max.ImageResolution | 4MP(2688*1520) |
| Stream | Max5fps@(2688*1520,2304*1296,1920*1080,1280*720) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264 |
| VideoBitRate | 16Kbps~6Mbps(CBR/VBRAdjustable) |
| Interface | |
| AlarmI/O | 1*AlarmOutput |
| AudioI/O | 1*AudioOutput Built-inMicrophone |
| PowerInput&RS485 | M12(5-pin)connectortopowerandRS485interface |
| USB | 1*Type-C(USB2.0)forPowerSupplyandDebug |
| Button | 1*PowerButton,1*ResetButton,1*Wi-FiButton |
| LEDIndicator | 1*StatusIndicator |
| WirelessNetwork | |
| WLAN | WiFiAPModeforConfiguration(IEEE802.11b/n/g,2.4GHz) WiFiSTAMode |
| Cellular | 4GLTE EU:LTE-FDD(B1/3/7/8/20/28A);LTE-TDD(B38/40/41) NA:LTE-FDD(B2/4/5/12/13/14/66/71) AU:LTE-FDD(B1/2/3/4/5/7/8/28);LTE-TDD(B40) |
| SIMCard | NanoSIM |
| Wireless DataRate | |
| Cellular | Uplink:30–50Mbps Downlink:42–150Mbps |
| Wi-Fi | Upto120Mbps(UL/DL) |
| System | |
| WorkMode | ActiveGuardMode(ProactiveProtectionMode): Thesystemremainsinadynamicstate,intelligentlywakingupviaPIRorAOV sensorstoperformreal-timetargetdetectionandalarmactions. |
| DeviceWake-upMethod | MQTT/TCP/Call |
| GPS | Built-inHigh-accuracyGPSModule |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| SystemCompatibility | API,MQTT,HTTP |
| General | |
| WorkingTemperature | Charging:-20°Cto45°C(-4°Fto113°F) Discharging:-20°Cto60°C(-4°Fto140°F) |
| WorkingHumidity | 0~95%(Non-condensing) |
| PowerSupply | Battery(7.2V,6400mAh,46.8Wh) |
| 5V/2AbyType-CPort(5V/3Arecommendedforcold-weatherreliability) | |
| BatteryHealth | TheBattery'sCapacitywillreduceto70%after500TimesofAccumulative ChargingandDischarging |
| PowerConsumption2 (DailyAverage) | ActiveGuardMode:2.70Wh/day(basedon48events/day) EcoSnapMode:1.29Wh/day(basedontimedsnapshots) StandbyMode:0.94Wh/day(ultra-lowpowerstandby) |
| WeatherProof | IP67 |
| Weight | NetWeight:0.9kg GrossWeight:1.7kg |
| CameraDimensions | 175*111*74mm(WithoutRainCover) |
| Warranty | 2Years |
| Certification | |
| EMC | CE-EMC(EN55032,EN55035),FCC(PART15B,PART15.247), RCM(AS/NZSCISPR32:2015+A1(2020)) |
| Safety | CE-LVD(ENIEC62368-1),RCM(ASNZS62368) |
| RF | CE-RED(EN301489-1,EN301489-17,EN301489-19,EN301489-52, EN301511,EN301908-1,EN301908-2,EN301908-13,EN300328, EN303413,EN50665,ENIEC62311) RCM(AS/CAS042.1,AS/CAS042.4,ASNZS4268,AS/NZS2772.2) |
| Environment | CE-ROHS(Directive(EU)2015/863amending2011/65/EU) |
