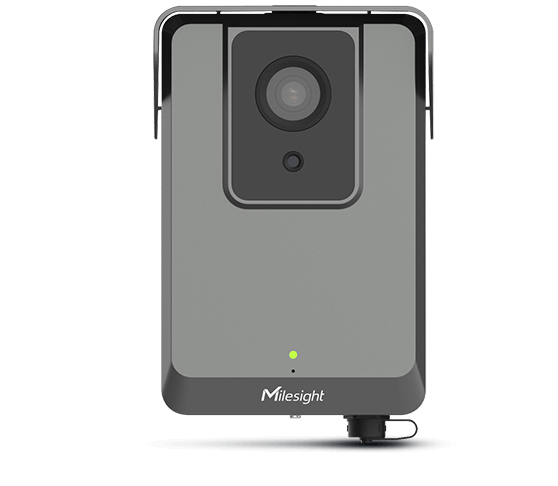

MileSight 4G Solar-powered Traffic Sensing Camera
MileSight 4G Solar-powered Traffic Sensing Camera
Model: SC211-EU/6mm/850
Regular price
$3,403.13
Sale price
$3,403.13
Regular price
Available in stock
Open here
* Support 4G LTE(B1/B3/B7/B8/B20/B28)
* Support Nano SIM；SD card, up to 256GB; MQTT&HTTP Protocol
* Solar-powered and DC supported (Solar Panel S45 is optional)
* 7.2V, 6400mAh, 46.08Wh battery and USB Type-C Power Supply(DC 5V/2A Power Adapter is optional)
* Built-in GPS Module
* Radar Trigger and AI Confirmation
* Low-power Consumption
* WiFi for web GUI configuration
Couldn't load pickup availability
- Vehicle Capture
- Support 4G LTE(B1/B3/B7/B8/B20/B28)
- Support Nano SIM；SD card, up to 256GB; MQTT&HTTP Protocol
- Solar-powered and DC supported (Solar Panel S45 is optional)
- 7.2V, 6400mAh, 46.08Wh battery and USB Type-C Power Supply(DC 5V/2A Power Adapter is optional)
- Built-in GPS Module
- Radar Trigger and AI Confirmation
- Low-power Consumption
- WiFi for web GUI configuration
- Resolution: 2MP 1920*1080
- Lens: Fixed 6mm
- IR Distance: 15m
- Protection level: IP66
- Interface: Solar Charging Interface(MC4), USB Type-C
- Radar-triggered vehicle capture
- AI focus algorithm
- Low-power operation
| Series | Solar-powered Series |
|---|---|
| Product Name | 4G Solar-powered Traffic Sensing Camera |
| Main Model Name | SC211-EU |
| Order Model Name | SC211-EU/6mm/850 |
| Model | SC211-NA/EU/AU (2MP) |
| Capture Performance | |
| CaptureRate | Upto98% |
| OptimalCaptureDistance | 6m(With6mmlens) 15m~20m(With16mmlens) |
| CaptureRange | 3~15m(With6mmlens) 10~25m(With16mmlens) |
| NighttimeIlluminationDistance | Upto15m(With6mmlens) Upto25m(With16mmlens) |
| Coverage | 2lanes(8m) |
| CaptureSpeed | Berecommendedtousewhenthevehiclespeed<30km/h(With6mmlens); Berecommendedtousewhenthevehiclespeed<70km/h(With16mmlens) |
| Wireless Network | |
| WLAN | 802.11n/802.11g |
| Cellular | 4GLTE NA:B2/B4/B5/B12/B13/B25/B26 EU:B1/B3/B7/B8/B20/B28 AU:B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIMCard | NanoSIM |
| Camera | |
| ImageSensor | 1/2.8″ProgressiveScanCMOS |
| Day/NightMode | Day/Night/Auto |
| IRWaveLength | 850nm(Default);740nm(Optional) |
| Lens | 16mm/6mm |
| FieldofView | H19.4°/D22.2°/V11°(16mm) H52.8°/D60.4°/V29.7°(6mm) |
| Image | |
| Max.Resolution | 1920×1080 |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| General | |
| GPS | Built-inHigh-accuracyGPSModule |
| RadarWorkingFrequency | 24GHz |
| Protocol | MQTT/HTTP |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto256G |
| SolarPower | |
| Power | ≥35W |
| OCV | <22V |
| Connector | MC4 |
| Direct&Battery Power | |
| PowerSupply | USBType-C |
| Battery | 7.2V,6400mAh,46.08Wh |
| OperationalTemperature | Charge:-20℃~45℃;Discharge:-20℃~60℃ |
| BatteryLife | Thepoweris70%after500timesofaccumulativecharginganddischarging |
| PowerConsumption | 288mWNormal(DetectionStatus);1.166WNormal(CaptureStatus) 5.9WMAX(NightCaptureStatus) |
| WeatherProof | IP66 |
| Weight | 1040g;212g(BatteryWeight) |
| RainCoverMovementDistance | 10mm |
| Dimensions | 175mmX111mmX63.2mm(WithoutRainCover) |
| Warranty | 2Years |
