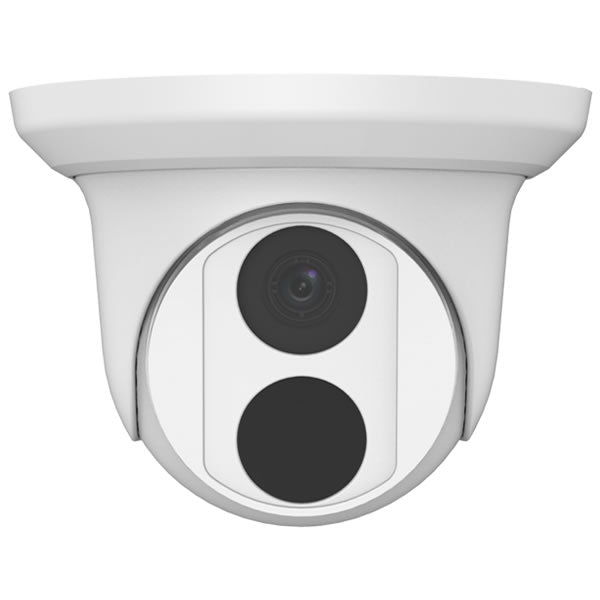

2MP IR Fixed Dome IP Camera - 2.8mm
2MP IR Fixed Dome IP Camera - 2.8mm
Model: SC-3225-IS-F28
Regular price
$153.70
Sale price
$153.70
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/2.7"CMOS, 2MP, 1920x1080@30fps, Ultra265, DWDR, Day&Night(ICR), IR up to 98ft (30m), ONVIF, IP67, 2.8mm Fixed Lens, DC12V/PoE
Couldn't load pickup availability
- 1/2.7",progressive scan,CMOS
- Up to 1920×1080 resolution,30fps
- 2.8mm
- Smart IR, up to 30m IR distance
- 2D/3D DNR, ROI, 9:16 corridor mode
- Ultra 265,H.265,ONVIF
- DC12V,PoE.Wide voltage range of ±25%
- IP67
| Camera | |
| Sensor | 1/2.7", progressive scan, 2megapixel, CMOS |
| Lens | 2.8mm@F1.6 |
| DORI Distance | Detect(m): 42, Observe(m): 16.8, Recognize(m): 8.4, Identify(m): 4.2 |
| Angle of view(H) | 112.7° |
| Angle of View (V) | 60.1° |
| Angle of View (O) | 146.5° |
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection?Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 4.5W | |
| Dimensions (Ø x H) | ?126 x 94 mm (Ø5.0 x 3.7) |
| Weight | 0.45 kg (0.99lb) |
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
