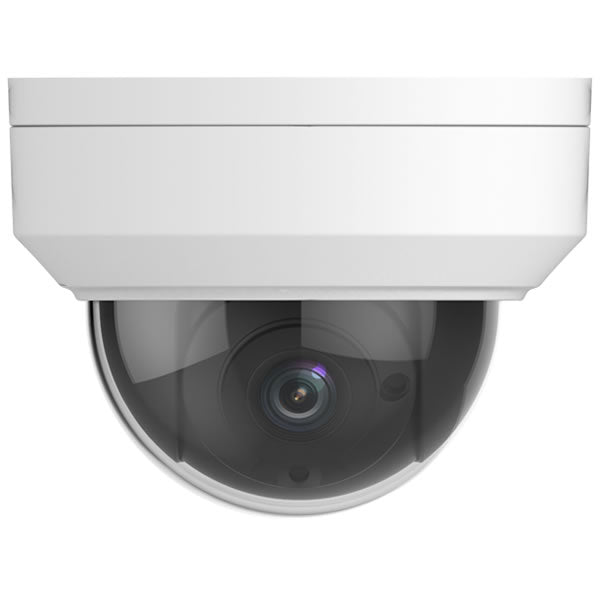

4MP WDR Vandal-resistant IR Fixed Dome IP Camera - 2.8mm
4MP WDR Vandal-resistant IR Fixed Dome IP Camera - 2.8mm
Model: SC-3145FWD-I-F28
Regular price
$179.80
Sale price
$179.80
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/3"CMOS, 4MP, 2592x1520@20fps, Ultra265, 120dB WDR, Day&Night(ICR), IR up to 98ft (30m), Audio, Alarm, MicroSD Slot, ONVIF, IP67, IK10, 2.8mm Fixed Lens, DC12V/PoE , Optional: Junction Box (GX-BK-JB82X or TR-JB03-G-IN) Wall Mount (GX-BK-WM02D)
Couldn't load pickup availability
- 1/3",progressive scan,CMOS
- Up to 2592×1520 resolution,20fps
- 2.8mm
- Smart IR, up to 30m IR distance
- 2D/3D DNR, ROI, 9:16 corridor mode
- Ultra 265,H.265,ONVIF
- DC12V,PoE.Wide voltage range of ±25%
- IP67
- IK10
| Camera | |
| Sensor | 1/3",progressive scan,4.0 megapixel, CMOS |
| Lens | 2.8mm@F2.0 |
| DORI Distance | Detect(m): 3, Observe(m): 25.2, Recognize(m): 12.6, Identify(m): 6.3 |
| Angle of View (H) | 104.4° |
| Angle of View (V) | 67° |
| Angle of View (O) | 135.7° |
| Adjustmentangle | Pan: 0°~360°, Tilt: 0°~75°, Rotate:0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >55 dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.264,MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps?4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition: | Face detection?Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Interface | |
| Audio I/O | Input: impedance 35 k?; amplitude 2 V [p-p] |
| Output: impedance 600 ?; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5W | |
| Dimensions (Ø x H) | ?108.5 x 81 mm (Ø4.28 x 3.2) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
