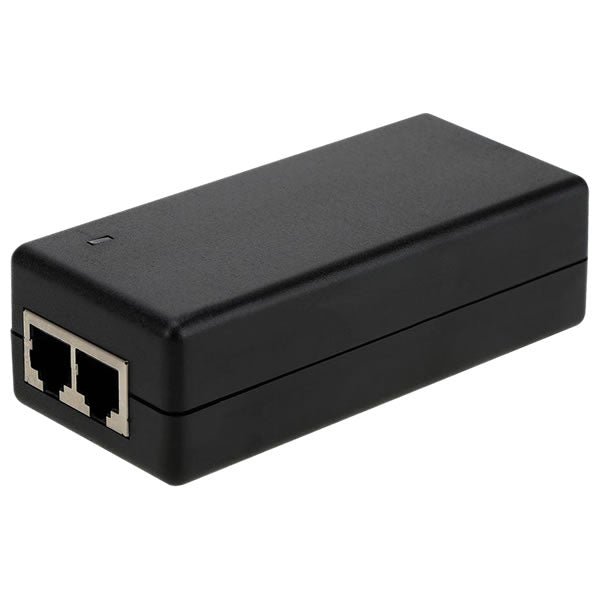

Uniview PWR-DC5712-P Univew Long Distance Dual-Port Network Power Supply Device
Uniview PWR-DC5712-P Univew Long Distance Dual-Port Network Power Supply Device
Model: PWR-DC5712-P
Regular price
$143.55
Sale price
$143.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
60W PSE (POE++). Compatible
With All IEEE pre 802.3af/
at/bt. Input: AC100-240V
@50/60Hz
Couldn't load pickup availability
• PoE++ power supply standard; Output power consumption up to 60W
• Double PoE Input/Output, Support IEEE 802.3af/at/bt
• Higher conversion efficiency (90%); Lower heat radiation;
• Working Temperature: -30C~55C;
• 6KV lightning protection; 8KV ESD;
• No fan, no noise, dustproof;
• LEDs indicate operation status.
| Model PWR-DC5712-P | ||
| Interface | Input Voltage | 100-240V AC @50/60Hz |
| Data Input/ PoE output | 2×RJ45 | |
| PoE | PoE Power Supply Type | End-span/Mid-span |
| PoE Power Output | DC 52V/60 watts max | |
| Power Pin Assignment | Pair1:1/2(+),3/6 ( ) Pair2:4/5(+),7/8 ( ) | |
| Ethernet Port | Transmission Rate | 10/100M /1000Mbps |
| Distance | 100m(Max.) | |
| Status | Power LED | 1 (Red) |
| PoE LED | 1 (Orange) | |
| Protection | Surge Protection | P Power:1KV(Differential Mode),2KV(Common Mode)1.2/50us,8/20us Ethernet:2KV(Differential Mode),6KV(Common Mode)10/7000us |
| ESD | 1a Contact Discharge Level 3 1b Air Discharge Level 3 Per: IEC61000-4-2 | |
| Environment | Working Temperature | -30C~55C |
| Storage Temperature | -10C~85C | |
| Humidity (Non-condensing) | 0~95% | |
| Mechanics | Dimension (LxWxH) | 112mm×45mm×32mm |
| Material | ABS Plastics | |
| Color | Black | |
