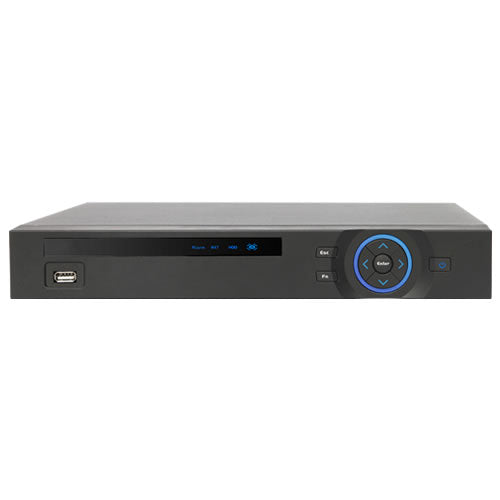

4 Channel Penta-brid 4MP Mini 1U DVR
4 Channel Penta-brid 4MP Mini 1U DVR
Model: PVR04H1-S2
Regular price
$187.05
Sale price
$187.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4CH BNC, CVI/TVI/AHD/CVBS up to 4MP@30fps, 4+2CH IP up to 5MP, H.264+, Dual Stream, HDMI, VGA, Audio 1in/1out, 1 RJ45 100M, ONVIF, 1SATA up to 8TB, 2USB2.0, RS485, DC12V, Mini 1U, Smartphone support
Couldn't load pickup availability
- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6 channels IP camera inputs, each channel up to 5MP
- Max 24 Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | NTSC |
| IP Camera Input | 4+2 Channel, each channel up to 5MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Record Rate | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) Sub steram: D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | When IP extension mode not enabled: 4CH: 1/4 4CH: 1/4/6 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.42, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 8TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB 2.0 |
| RS232 | N/A |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (Without HDD) |
| Construction | |
| Dimensions | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Net Weight | 1.5kg (3.3 lb) (without HDD) |
| Gross Weight | 2kg (4.4lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Certifications | |
| Certifications | FCC: Part 15 Subpart B |
| CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |
| UL: UL 60950-1 | |
