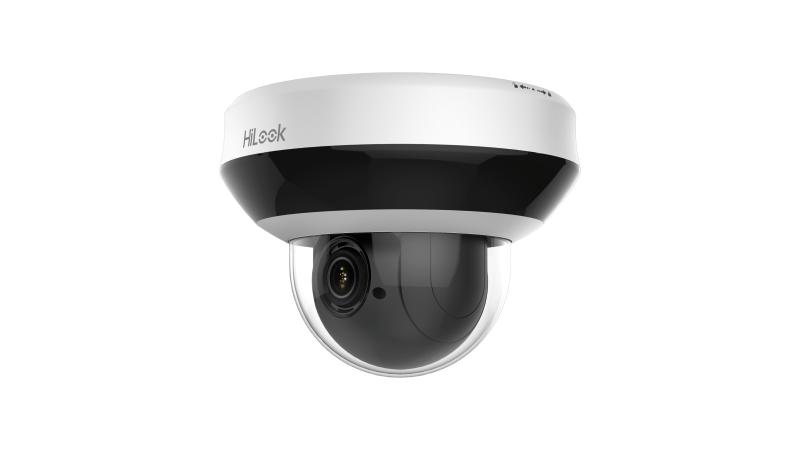

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome Camera
2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome Camera
Model: PTZ-N2404I-DE3(F)
Available in stock
Send a copy to email:
Open here
HiLook 4MP 4x Mini PTZ with Optical Zoom /Two-inch 4 MP camera with pan, tilt and zoom (4x) ability, H.265+, 120 dB true WDR, up to 20 m enhanced IR, IP66, IK10 / Wall Mount: WMP-MPZ
Couldn't load pickup availability
- Two-inch 4 MP camera with pan, tilt and zoom (4x) ability
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Great night-time performance with up to 20 m enhanced IR
- Water and dust resistant (IP66), and vandal proof (IK10)
|
Camera Module |
|
|
Image Sensor |
1/2.8 progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @(F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR |
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|
Gain |
Auto/Manual |
|
Shutter Time |
50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s |
|
Day & Night |
IR Cut Filter |
|
Digital Zoom |
16× |
|
Privacy Mask |
24 programmable privacy masks |
|
Focus Mode |
Auto/Semi-automatic/Manual |
|
WDR |
120 dB WDR |
|
Lens |
|
|
FOV |
Horizontal field of view: 100° to 33° (Wide-Tele), Vertical field of view: 53° to 18° (Wide-Tele), Diagonal field of view: 119° to 37.5° (Wide-Tele) |
|
Focal Length |
2.8 mm to 12 mm, 4× optical zoom |
|
Zoom Speed |
Approx. 2 s (optical lens, wide-tele) |
|
Working Distance |
10 mm to 1500 mm (wide-tele) |
|
Aperture Range |
F1.5 to F2.7 |
|
Supplement Light |
|
|
IR Distance |
20 m |
|
Smart IR |
Support |
|
PTZ |
|
|
Movement Range (Pan) |
0° to 355° |
|
Pan Speed |
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
|
Movement Range (Tilt) |
0° to 90° |
|
Tilt Speed |
Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s |
|
Proportional Zoom |
Support |
|
Presets |
300 |
|
Power-off Memory |
Support |
|
Compression Standard |
|
|
H.264+ |
Support |
|
H.265+ |
Support |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
|
H.265 Type |
Main Profile |
|
Video Bitrate |
32 Kbps to 16384 Kbps |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|
Audio Bitrate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
|
SVC |
Support |
|
Network |
|
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|
Network Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
|
Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
|
API |
Open-ended, support Open Network Video Interface, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support HiLookVision |
|
Simultaneous Live View |
Up to 20 channels |
|
User/Host |
Up to 32 users, 3 levels: Administrator, Operator and User |
|
Client |
iVMS-4200, HikCentral Pro, HiLookVision |
|
Web Browser |
IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
|
Image |
|
|
Image Enhancement |
3D DNR, BLC, HLC, Regional Exposure, Regional Focus |
|
Max. Resolution |
2560 × 1440 |
|
Main Stream |
50 Hz: 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Interface |
|
|
Audio Input |
1-ch audio input (line in) |
|
Audio Output |
1-ch audio output (line out) |
|
Network Interface |
1 RJ45 10 M/100 M Ethernet, PoE |
|
Built-in Microphone |
1 built-in microphone, picking up sounds in the radius up to 5 meters |
|
Smart Features |
|
|
Basic Event Detection |
Motion Detection, Video Tampering Detection, Exception |
|
Smart Detection |
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
|
Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
|
ROI |
Main stream, sub-stream, and third stream respectively support two fixed areas. |
|
General |
|
|
Material |
Aluminum alloy, PC, PC+ABS |
|
Dimensions |
130.7 mm × 101.7 mm ( 5.15 × 4.00) |
|
Weight |
Approx. 0.53 kg (1.17 lb) |
|
Protection Level |
IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Power |
12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR) |
|
Working Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Working Humidity |
</= 90% |
