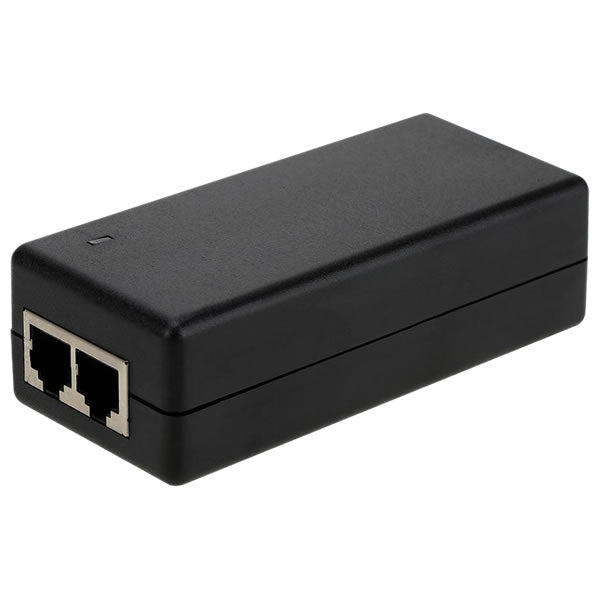

Galaxy Pro 60W POE Injector Power Sourcing Equipment (PSE)
Galaxy Pro 60W POE Injector Power Sourcing Equipment (PSE)
Model: POE-PTZ-60W
Regular price
$143.55
Sale price
$143.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Input: AC 100-240V~ 50/60Hz, Output: DC 56V/1.1A, 60W PSE (POE++), Compatible with All IEEE pre 802.3af, 802.3at and Legacy Powered Devices.
Couldn't load pickup availability
- Input: AC 100-240V~ 50/60Hz
- Output: DC 56V/1.1A
- 60W PSE (POE++)
- Compatible with All IEEE pre 802.3af, 802.3at and Legacy Powered Devices.
| PSE | |
| INPUT | AC 100-240V~ 50/60Hz 2AMax |
| OUTPUT | DC 56V/1.1A (+2%,-4%) |
| Protection/Environmental | |
| Protection | Output over current protection: 1.2A Short circuit protection (Yes) Surge protection power input port meets EN 61000-4-5 criterion B: L-N 2KV L,N-PE 4KV Output communication port :1kV differential mode (criterion B) |
| Enviromental | |
| Storage Temperature | -40°C~70°C(-40°F~158°F) |
| Operating Temperature | -20°C~60°C(-4°F~140°F) |
| Working humidity | <95% RH |
| Physical Properties | |
| Weight | 473g(1.04lb) |
| Dimension(LxWxH) | 183mmx70.8mmx37mm(7.20x2.79x1.46) |
| Installation mode | Plane installation |
| Color | Black |
| Input plug | 3-pin plug |
| Power Out Pin | Endspan 1.2(+),3.6(-)Midspan 4.5(+),7.8(-) |
| Output plug | 18.5+/-0.5mm (Network Cable Connector) |
| Safety Standards | |
| Certification | CCC,CB,CE,FCC,UL |
