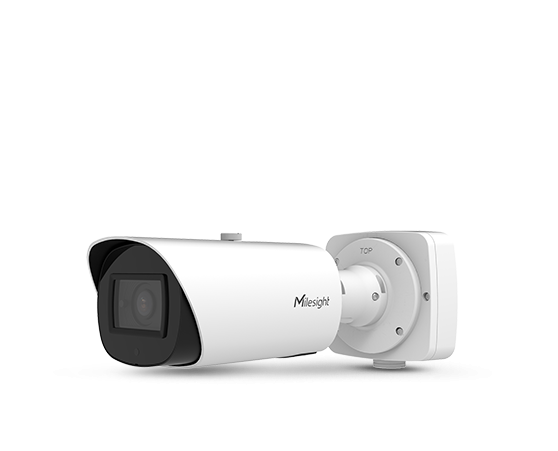

MileSight AI Outdoor Parking Management Pro Bullet Plus Camera
MileSight AI Outdoor Parking Management Pro Bullet Plus Camera
Model: PMC8266-FPE/3.6-10mm/M/A62
Regular price
$1,743.75
Sale price
$1,743.75
Regular price
Available in stock
Open here
* Two detection modes are available: occupancy detection(without LPR), parking detection(with LPR)
* Triggered Report: when parking space is occupied or released
* Interval Report: regular report of entire parking situation
* Mounting Height 4-8m for Parking Detection with LPR, and 3.5m above for Occupancy Detection
Couldn't load pickup availability
- Occupancy Detection (Up to 100 parking spaces)
- Parking detection with LPR (Up to 4 parking spaces)
- Parking Violation Detection
- Time-out Alarm for parking
- Two detection modes are available: occupancy detection(without LPR), parking detection(with LPR)
- Triggered Report: when parking space is occupied or released
- Interval Report: regular report of entire parking situation
- Mounting Height 4-8m for Parking Detection with LPR, and 3.5m above for Occupancy Detection
- Resolution: 8MP 3840*2160
- Frame Rate: 30fps
- Lens: Motorized 3.6~10mm
- WDR: 120dB
- Illumination Distance: 65m
- Protection level: IP67, IK10
- Interface: Alarm I/O, Audio I/O, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V
- Parking occupancy detection
- Parking detection with LPR
| Series | Intelligent Traffic Series |
|---|---|
| Product Name | AI Outdoor Parking Management Pro Bullet Plus Camera |
| Main Model Name | PMC8266-FPE |
| Order Model Name | PMC8266-FPE/3.6-10mm/M/A62 |
| AI Parking Management Pro Bullet Plus Camera | |
| Model | PMC8266-FPE (4K) |
| Camera | |
| Appearance | Appearance |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4 |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Illumination Distance | Up to 65m |
| Parking Management | |
| Parking Application Mode | Occupancy Detection/Parking Detection |
| Parking Space Detection | Up to 4 Parking Spaces for Parking Detection with LPR |
| Detection Accuracy | >98% |
| Mounting Height | 4~8m (For Parking Detection with LPR) |
| Lens | Motorized 3.6~10mm@F1.4 |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| System | |
| Storage | microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | MQTT, ONVIF Profile G&S&T, API |
| General | |
| Working Temperature | -40℃~ 60℃ |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 8W MAX |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
