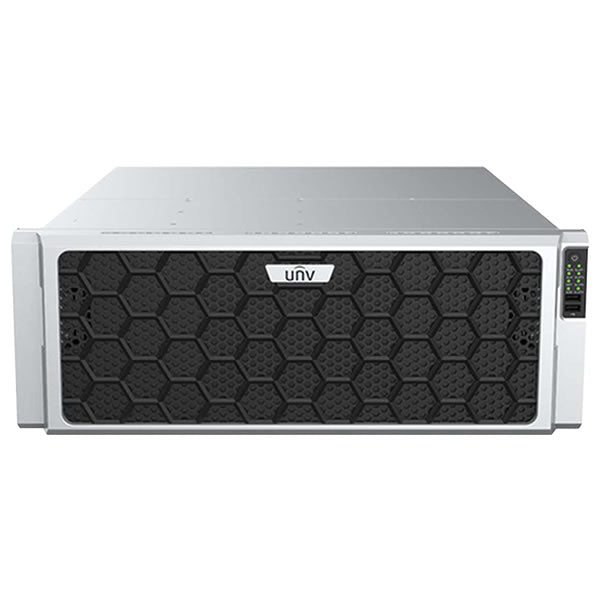

Uniview NVR824-256R NDAA 256CH 4K/12MP 24x SATA 4U NVR
Uniview NVR824-256R NDAA 256CH 4K/12MP 24x SATA 4U NVR
Model: NVR824-256R
Available in stock
Send a copy to email:
Open here
256CH IP up to 12MP, 768Mbps, 1x HDMI up to 4K, 1x VGA, Ultra 265/H.265/H.264, 5 x 4K@30fps, 20 x 1080P@30fps, Audio 1in/1out, Alarm 24in/8out, 4x RJ45 10/100/1000M, 24x SATA up to 10TB/ea, 2xUSB2.0, 2xUSB3.0, 1x eSATA, RAID 0/1/5/6/10/50/60, 1x RS-232, 1x RS-485
Couldn't load pickup availability
Support Ultra 265/H.265/H.264 video formats 128/256-channel input Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution HDMI1, HDMI2 and VGA independent outputs provided Up to 12 Megapixels resolution recording Redundant power supply optional Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable 24 SATA HDDs, up to 10TB for each HDD Support 2 miniSAS Interfaces Support 12V power output ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade Support N+1 Hot spare
| Model | NVR824-128R | NVR824-256R |
| Video/Audio Input | ||
| IP Video Input | 128-ch | 256-ch |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 768Mbps | |
| Outgoing Bandwidth | 768Mbps | |
| Remote Users | 128 | 256 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra 265, H.265, H.264 | |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 | |
| Hard Disk | ||
| SATA | 24 SATA interfaces | |
| Capacity | up to 10TB for each HDD | |
| Extension board | 4 | |
| miniSAS* | 2 miniSAS ports | |
| eSATA | 1 | |
| Disk Array | ||
| Array Type | RAID 0/1/5/6/10/50/60 | |
| External Interface | ||
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface | |
| Serial Interface | 1 x RS232, 1 x RS485 | |
| USB Interface | Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0 | |
| Alarm In | 24-ch | |
| Alarm Out | 8-ch | |
| Power Output | 12V | |
| General | ||
| Power Supply | 100 ~ 240V AC Power Consumption: </= 70 W (without HDD) | |
| Working Environment | -10°C ~ + 50°C (+14°F ~ +122°F), Humidity </= 90% RH (non-condensing) | |
| Dimensions | 533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9") | |
| Weight (without HDD) | </= 12.5 Kg (27.56 lb) | |
