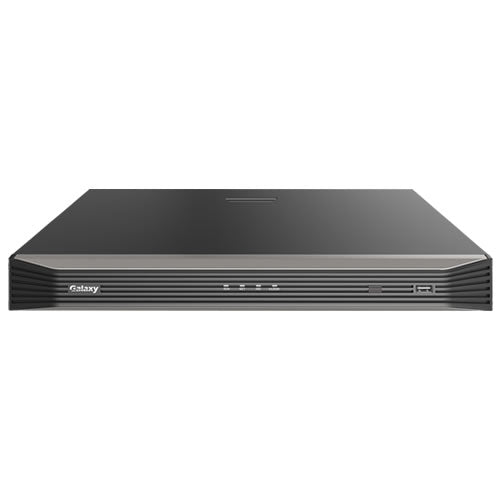

Galaxy Pro Series 16CH 4K 1U NVR w/ 16PoE Ultra HD NVR
Galaxy Pro Series 16CH 4K 1U NVR w/ 16PoE Ultra HD NVR
Model: NVR8216-P16+4TB
Regular price
$862.75
Sale price
$862.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
160Mbps Input Bandwidth, 4K, H.264, H.265, 16x 4K@30fps, 16x 5MP/4MP/3MP/2MP@30fps, Up to 12MP Recording Resolution, 1x HDMI, 1x VGA, Audio 1in/1out, Alarm 4in/1out, 2x USB2.0, 1x USB3.0, 1x 10/100/1000M RJ-45, 16x PoE, 2x SATA up to 8TB/ea, 1U Case, P2P
Couldn't load pickup availability
- 16-channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- Up to 8TB for each disk
- Support various VCA detection alarm and VCA search
- Plug & Play with up to 8/16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Decoding | |
| Compression | H.265/H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | up to 8TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0°Rear panel: 1 x USB3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 240W in total (15W for each) |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply | 100 ~ 240 VAC |
| Consumption (without HDD) | |
| Working Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 380 mm x 315mm x 46 mm |
| Weight (without HDD) | |
