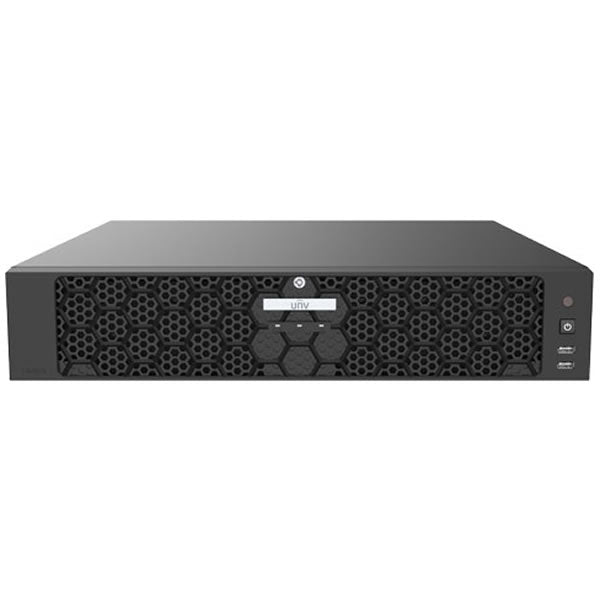

UNV Uniview 32MP 32CH 8SATA RAID NVR
UNV Uniview 32MP 32CH 8SATA RAID NVR
Model: NVR508-32E-R
Regular price
$1,621.10
Sale price
$1,621.10
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Up to 32MP, 32CH, 384Mbps Incoming, 384Mbps Outgoing, 2x 4K HDMI, 1x VGA, 2x32MP@30fps, 8x8MP@30fps, 32x2MP@30fps, 8xSATA up to 16TB/ea, VCA, Intrusion, Cross Line, 2x RJ45 10/100/1000M, 2x USB2.0, 2x USB3.0, RS485, RS232, Audio 1in/2out, Alarm 16in/10out, ONVIF, RAID 0/1/5/6/10, eSATA
Couldn't load pickup availability
- Support Ultra 265/H.265/H.264 video formats
- 32-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- 8 SATA HDDs, up to 16TB for each HDD
- Support N+1 Hot spare
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- Redundant power supply optional
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Decoding | Description |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30 |
| Audio Compression | G.711A,G.711U |
| Network | Description |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,NFS,RTSP,802.1x,IPV6 |
| Browser(Plugin) | IE(IE10/11)for Windows,Firefox(version 52.0 and above)for Windows,Chrome(version 45 and above)for Windows,Edge(version 79 and above)for Windows |
| Video/Audio Input | Description |
| RCA Audio Input | 1-ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI1,HDMI2:4K(3840x2160)/60Hz,4K(3840x2160)/30Hz,1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz |
| VGA Output | VGA1,VGA2:1920x1080/60Hz,1920x1080/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | Description |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/Event Snapshot | 16-ch snapshot,up to 1080P resolution |
| Recording | Description |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Smart | Description |
| VCA Detection by IPC | Vehicle Detection,SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area),Ultra Motion Detection(UMD),Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection),People Counting(People Flow Counting,Crowd Density Monitoring),Video Metadata,Traffic Monitoring |
| VCA Search | Motor Vehicle Search,Non-Motor Vehicle Search, General Search,People Counting Report,Heat Map |
| Smart by IPC | Total 16-ch(Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring) |
| Vehicle Picture Library | Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total |
| Alarm | Description |
| General Alarm | Defocus Detection,Scene Change Detection,Object Left Behind,Object Removed,Auto Tracking,Motion Detection,Tampering, Video Loss Alarm Input,Audio Detection |
| Alert Alarm | IP Conflict,Network Disconnected,Disk Offline,Disk Abnormal,Illegal Access,Hard Disk Space Low,Hard Disk Full,Recording/Snapshot Abnormal |
| Hard Disk | Description |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each disk |
| Disk Group | Support |
| Disk Array Type | RAID 0,1,5,6,10 |
| External Interface | Description |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB | Front panel: 2 x USB2.0,Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12V |
| Power Supply | AC 100~240V Power Consumption: </= 50W (without HDD) |
| Working Environment | Description |
| Working Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) |
| Working Humidity | </= 90% RH (non-condensing) |
| Power Consumption (without HDD) | </= 50W |
| Dimensions | Description |
| Weight (without HDD) | </= 6Kg (13.23lb) |
| Dimensions | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Certification | Description |
| Certification | CE,FCC,UL,RoHS,WEEE |
| CE | EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035 |
| FCC | Part15 Subpart B |
