Model

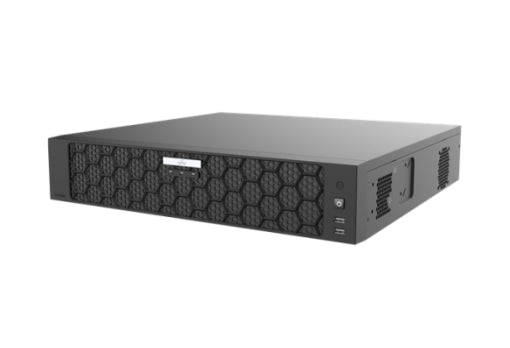

NVR504-32X-IQ

NVR504-64X-IQ

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

Smart Off:

H265: 6x 4K@30, 8x 6MP@30, 10x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 25 x 1080P@30, 50 x 720P@30, 100 x D1@30

H264: 6x 4K@30, 8x 6MP@30, 10x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 25 x 1080P@30, 50 x 720P@30, 100 x D1@30

Smart On: When Smart by NVR on, the decoding capacity is same as smart off.

Audio Compression

G.711A, G.711U

Decoding Capability Description

The resolution of each channel cannot exceed 4096 pixels in length or width,  For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution

video from the HDMI port, please clear the VGA video on the preview page.

Network

Incoming Bandwidth

384 Mbps

Outgoing Bandwidth

384 Mbps

Max Users Can Be Added

32

Max Remote Users

128

Protocols

TCP/IP, SMTP, NFS, 802.1x, RTSP,

SNMP, IPv6, IPv4, HTTPS

UPnP,

NTP,

DHCP,

PPPoE,

HTTP,

DNS,

DDNS,

Browser (Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Browser (Plugin-Free)

Chrome 57+, Edge 16+, Firefox 58+, Safari 11+

Video/Audio Input

IP Video Input

32-ch

64-ch

RCA Audio Input

1-ch

Peripheral Input

POS

All channels

Ip Speaker

32-ch

64-ch

Video/Audio Output

Video Output

Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and

HDMI3 independent output.

HDMI Output

4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz

VGA Output

1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI Standard

HDMI2.0

RCA Audio Output

3-ch

Liveview Display

1/4/6/8/9/16/25/32

Default Num of Live Screen

32

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Playback Screen

1/4/9/16

Corridor Mode Screen of

Playback

1/3

Two-way Audio

Two-way Audio

1-ch, RCA (Using the audio input and output)

Recording

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Num of Concurrent Playback

32-ch

Synchronous Playback in

Local

16-ch

Smart Function

VCA Detection by IPC

Face Detection, Face Comparison, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring, Long Stay

Detection, Fall Detection, Multi-Target Detection, Package Detection, Vehicle Detection (LPR)

Smart by IPC

All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection

(LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring, People Counting

Smart by NVR

Face Detection, Face Comparison, Ultra Motion Detection (UMD), People Counting (People Flow

Counting, Crowd Density Monitoring), Smart Intrusion Prevention (SIP), Plate Comparison

Smart by NVR Analyzer Mode

Mixed Mode (Face Recognition+AcuSearch), Mixed Mode (SIP+UMD), Modes cannot active

simultaneously, only one mode can active at a time.

VCA Search

Face Snapshot Search, Face Comparison Search, Behavior Search, Motor Vehicle Search,

Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch, AcuTrack

AcuSearch

Acu Search Performance

All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part

brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

AcuTrack

Acu Track Performance

All channels with UNV SIP/UMD Camera, Up to 16-ch with normal camera (UNV and Third-part

brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

face detection

face detection by NVR

All channels with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and

Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Search by Image

Support

Plate Comparison

Plate Comparion by NVR

All channels with UNV LPR Camera, normal/Third-part brand cameras not supported

Plate Library

Up to 5 plate libraries, with up to 25000 plates in total

UMD

UMD by NVR with normal

cameras

Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

SIP

SIP by NVR with normal

cameras

Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K)

Capacity of Smart Snapshots

Intelligent Mark by IPC

Support

Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking,

Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard

Temperature, Array Damaged, Array Degraded

Num of Concurrent

Processing Alarms

One every 5 seconds

Hard Disk

SATA

4 SATA Interfaces

Capacity

Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and

hard disk size, The environment temperature for use should not exceed 40°C.)

Disk Group

Support

Redundant Storage

Support

Disk Array Type

RAID 0, 1, 5, 6, 10

Hot Swap

N/A

External Interface

Network Interface

2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

Network Working Mode

Muli-access, load balance, network fault-tolerance

USB

Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0

RS485

1

RS232

1

Alarm In

16-ch

Alarm Out

10-ch

eSATA

1

miniSAS

N/A

miniSAS HD

N/A

Extension Board

N/A

Power Output

12 V

Power Supply

AC 100 to 240 V

Power Switch

Support

Redundant Power Supply

N/A

Buzzer

Support

Working Environment

Working Temperature

-10 ℃ to 50 ℃ (14 ℉ to 122 ℉)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without

HDD)

≤ 50W
