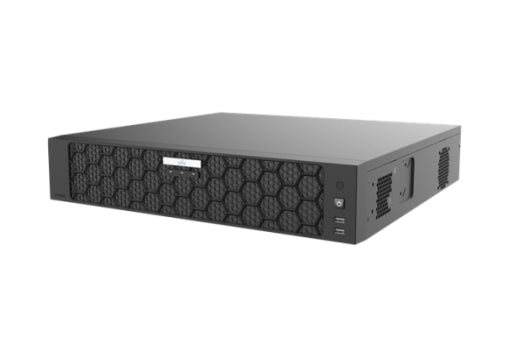

Uniview 32-ch NVR with advanced AI AcuSearch/AcuTrack and SeekFree NVR - NVR504-32E-IM
Uniview 32-ch NVR with advanced AI AcuSearch/AcuTrack and SeekFree NVR - NVR504-32E-IM
Model: NVR504-32E-IM
Available in stock
Open here
Uniview 32-ch NVR with advanced AI AcuSearch/AcuTrack and SeekFree, support for AI detection with third-party cameras. up to 4 HDDs each support 24TB, RAID 0, 1, and 5. 3 HDMI outputs (up to 4K), 1 VGA output, 2U of rack space, Support POS and 16CH IP Speaker, 2 RJ45 10 M/100 M/1000 M Ethernet Port, Alarm, eSATA
Couldn't load pickup availability
- Support Ultra 265/H.265/H.264 video formats
- Support 16/32/64 channel input
- Support 3 ch HDMI, 1 ch HDMI up to 4K (3840x2160) resolution
- Support VGA and HDMI independent output
- Support up to 32 Megapixels resolution recording
- Support ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
|
Model |
NVR504-16E-IM |
NVR504-32E-IM |
NVR504-64E-IM |
|||||||
|
Decoding |
||||||||||
|
Decoding Format |
Ultra 265, H.265, H.264 |
|||||||||
|
Decoding Capability |
Smart Off: H265/H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 16 x 3MP@30, 16 x 1080P@30, 16 x 720P@30 Smart On: H265/H264: 1 x 32MP@30, 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 5 x 6MP@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 16 x 720P@30 |
Smart Off: H265/H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 21 x 3MP@30, 32 x 1080P@30, 32 x 720P@30 Smart On: H265/H264: 1 x 32MP@30, 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 5 x 6MP@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 |
Smart Off: H265/H264: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 21 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 Smart On: H265/H264: 1 x 32MP@30, 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 5 x 6MP@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 |
|||||||
|
Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length or width |
|||||||||
|
Audio Compression |
G.711A, G.711U |
|||||||||
|
Network |
||||||||||
|
Incoming Bandwidth |
Smart Off: 384 Mbps, Smart On: 200 Mbps |
|||||||||
|
Outgoing Bandwidth |
Smart Off: 384 Mbps, Smart On: 200 Mbps |
|||||||||
|
Max Users Can Be Added |
32 |
|||||||||
|
Max Remote Users |
128 |
|||||||||
|
Protocols |
TCP/IP, P2P, SMTP, NFS, 802.1x, RTSP, IPv4, HTTPS, PPPoE, HTTP |
UPnP, |
NTP, |
DHCP, |
DNS, |
DDNS, |
SNMP, |
IPv6, |
||
|
Browser (Plugin) |
Chrome, Edge, Firefox |
|||||||||
|
Browser (Plugin-Free) |
Chrome, Edge, Firefox, Safari |
|||||||||
|
Video/Audio Input |
||||||||||
|
IP Video Input |
16-ch |
32-ch |
64-ch |
|||||||
|
BNC Audio Input |
N/A |
|||||||||
|
RCA Audio Input |
1-ch |
|||||||||
|
3.5mm Audio Input |
N/A |
|||||||||
|
Peripheral Input |
||||||||||
|
POS |
All channels |
|||||||||
|
Ip Speaker |
16-ch |
|||||||||
|
Video/Audio Output |
||||||||||
|
Video Output |
Support 3-ch HDMI, 1-ch VGA, HDMI1 and VGA simultaneous output, HDMI1 /VGA and HDMI2 and HDMI3 independent output. |
|||||||||
|
HDMI Output |
HDMI1: 4K (3840 2160)/60 Hz, 4K (3840 2160)/30 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz; HDMI2: |
|||||||||
|
|
4K (3840 2160)/30 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz;HDMI3:1920 × 1080/60 Hz, 1280 × 720/60 |
||
|
VGA Output |
1920 × 1080/60 Hz, 1280 × 720/60 Hz |
||
|
HDMI Standard |
HDMI2.0 |
||
|
BNC Audio Output |
N/A |
||
|
RCA Audio Output |
2-ch |
||
|
3.5mm Audio Output |
N/A |
||
|
Liveview Display |
HDMI1 and VGA: 1/4/6/8/9/16 HDMI2: 1/4/6/8/9/16 HDMI3: 1/4/6/8/9/16 |
HDMI1 and VGA: 1/4/6/8/9/16/25/32 HDMI2: 1/4/6/8/9/16 HDMI3: 1/4/6/8/9/16 |
HDMI1 and VGA: 1/4/6/8/9/16/25/36/64 HDMI2: 1/4/6/8/9/16/25/36 HDMI3: 1/4/6/8/9/16 |
|
Default Num of Live Screen |
HDMI1 and VGA: 16; HDMI2: 16; HDMI3: 16 |
HDMI1 and VGA: 32; HDMI2: 16; HDMI3: 16 |
HDMI1 and VGA: 64; HDMI2: 36; HDMI3: 16 |
|
Corridor Mode Screen |
HDMI1 and VGA: 3\4\5\7\9\10\12\16; HDMI2: 3\4\5\7\9\10\12\16; HDMI3: 3\4\5\7\9\10\12\16; |
HDMI1 and VGA: 3\4\5\7\9\10\12\16\32; HDMI2: 3\4\5\7\9\10\12\16\32; HDMI3: 3\4\5\7\9\10\12\16; |
HDMI1 and VGA: 3\4\5\7\9\10\12\16\32; HDMI2: 3\4\5\7\9\10\12\16\32; HDMI3: 3\4\5\7\9\10\12\16; |
|
Playback Screen |
1/4/9/16 |
||
|
Corridor Mode Screen of Playback |
1/3 |
||
|
Two-way Audio |
|||
|
Two-way Audio |
1-ch, RCA (Using the audio input and output) |
||
|
Snapshot |
|||
|
FTP/Schedule/Event Snapshot |
16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
||
|
Recording |
|||
|
Recording Resolution |
32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
||
|
Num of Concurrent Playback |
32-ch |
||
|
Synchronous Playback in Local |
16-ch |
||
|
Smart Function |
|||
|
VCA Detection by IPC |
Face Detection, Face Comparison, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Long Stay Detection, Fall Detection, Multi-Target Detection, Package Detection, Vehicle Detection (LPR) |
||
|
Smart by IPC |
All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, People Counting |
||
|
Smart by NVR |
Face Detection, Face Comparison, Ultra Motion Detection (UMD), Smart Intrusion Prevention (SIP), Video Metadata, Plate Comparison |
||
|
Smart by NVR Analyzer Mode |
Mixed Mode (Face Recognition+Mixed-Traffic Dection+AcuSearch/AcuTrack), Single Mode (SeekFree Mode), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode |
||
|
|
can active at a time. |
|
VCA Search |
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch, AcuTrack, SeekFree, Pedestrian Search, Event Search |
|
AcuSearch |
|
|
Acu Search Performance |
All channels with UNV SIP/UMD Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 4K/5MP/4MP/3MP/2MP) |
|
AcuTrack |
|
|
Acu Track Performance |
All channels with UNV SIP/UMD Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 4K/5MP/4MP/3MP/2MP) |
|
SeekFree |
|
|
SeekFree Performance |
All channels with UNV SIP/UMD Camera |
|
SeekFree Language |
English |
|
face detection |
|
|
face detection by NVR |
Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 4K/5MP/4MP/3MP/2MP) |
|
Search by Image |
Support |
|
Plate Comparison |
|
|
Plate Comparion by NVR |
All channels with UNV LPR Camera, normal/Third-part brand cameras not supported |
|
Vehicle Number Library |
Up to 16 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
|
SIP |
|
|
SIP by NVR with normal cameras |
8-ch |
|
UMD |
|
|
UMD by NVR with normal cameras |
16-ch |
|
analysis |
|
|
analysis with normal cameras |
N/A |
|
analysis Type |
N/A |
|
Video Metadata |
|
|
Video Metadata by NVR with normal cameras |
Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 4K/5MP/4MP/3MP/2MP) |
|
Video Metadata Type |
Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color, Human Body: Gender, Age, Mask, Hairstyle, Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color |
|
Capacity of Smart Snapshots |
|
|
Intelligent Mark by IPC |
Support |
|
Capacity of Snapshot Records |
3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for Video Metadata |
|
Alarm |
|
|
General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Array Damaged |
||
|
Num of Concurrent Processing Alarms |
One every 5 seconds |
||
|
Hard Disk |
|||
|
SATA |
4 SATA Interfaces |
||
|
Capacity |
Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
||
|
Disk Group |
Support |
||
|
Redundant Storage |
Support |
||
|
Disk Array Type |
RAID 0, 1, 5 |
RAID 0, 1, 5 |
N/A |
|
Hot Swap |
N/A |
||
|
External Interface |
|||
|
Network Interface |
2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
||
|
Network Working Mode |
Muli-access, load balance, network fault-tolerance |
||
|
USB |
Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
||
|
RS485 |
1 |
||
|
RS232 |
1 |
||
|
Alarm In |
16-ch |
||
|
Alarm Out |
10-ch |
||
|
eSATA |
1 |
||
|
miniSAS |
N/A |
||
|
miniSAS HD |
N/A |
||
|
Power Output |
12 V |
||
|
Extension Board |
N/A |
||
|
Buzzer |
Support |
||
|
Power Supply |
AC 100 to 240 V |
||
|
Power Switch |
N/A |
||
|
Redundant Power Supply |
N/A |
||
|
PoE |
|||
|
PoE Interface |
N/A |
||
|
Max Power |
N/A |
||
|
Supported Standard |
N/A |
||
|
Working Environment |
|||
|
Working Temperature |
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
||
|
Working Humidity |
≤ 95% RH (non-condensing) |
||
|
Power Consumption (without HDD) |
≤30W |
||
|
Heat Dissipation |
Fan, Radiator |
||
|
Dimensions |
|||
|
Weight (without HDD) |
≤ 5.5kg (12.1lb) |
||
|
Height |
2U |
||
|
Dimensions |
442mm (17.4") x 432.9mm (17") x 88.6mm (3.5") |
||
|
GUI Language |
|
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|
Certification |
|
|
Certification |
CE; FCC; UL; RoHS; WEEE |
|
CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130 |
|
FCC |
Part15 Subpart B |
