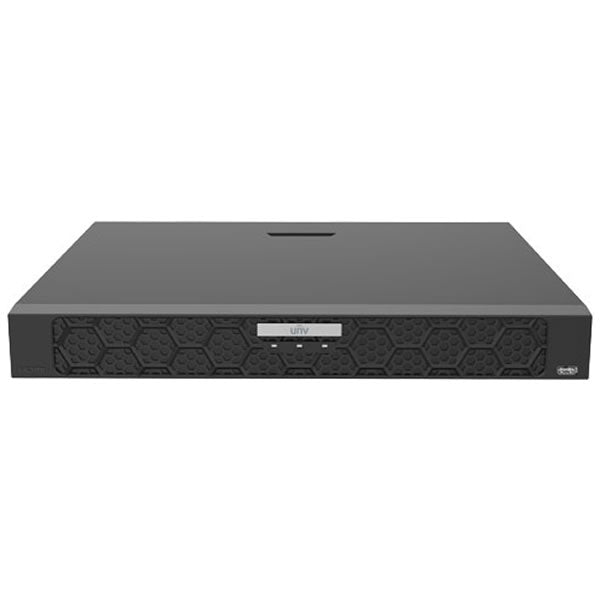

UNV Uniview 16MP 16CH 2SATA NVR
UNV Uniview 16MP 16CH 2SATA NVR
Model: NVR502-16B
Regular price
$430.65
Sale price
$430.65
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Up to 16MP, 16CH, 320Mbps Incoming, 160Mbps Outgoing, 1x 4K HDMI, 1x VGA, 2x16MP@30fps, 4x8MP@30fps, 8x4MP@30fps, 16x2MP@30fps, 2xSATA up to 8TB/ea, VCA, Intrusion, Cross Line, 1x RJ45 10/100/1000M, 2x USB2.0, 1x USB3.0, RS485, Audio 1in/1out, Alarm 8in/2out, ONVIF
Couldn't load pickup availability
- Support Ultra 265/H.265/H.264 video formats
- 16-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 2 SATA HDD, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Model | NVR502-16B |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming bandwidth | 320Mbps |
| Outgoing bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Liveview display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection by Camera | Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata by Camera | Total 8-ch |
| General Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front: 1 x USB2.0, Rear panel: 1 x USB3.0, 1 x USB2.0 |
| RS232 | NA |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| General | |
| Power Supply | 12V DC/3.3A Power Consumption: </= 20W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity </= 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm × 315mm × 53mm (15.0" × 12.4" × 2.1") |
| Weight (without HDD) | </= 2Kg (4.40lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
